Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond.
Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond.
Trek

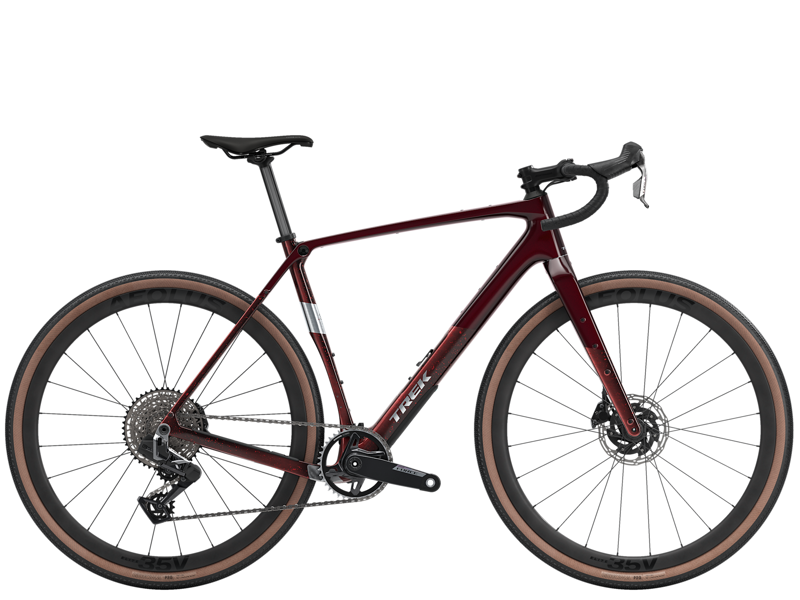

Trek Checkpoint SL 7 AXS Graven Bike in Dark Red/Carbon Red Smoke Splatter

£5,000.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Checkpoint SL 7 AXS Graven Bike in Dark Red/Carbon Red Smoke Splatter

Season:2026

Brand:Trek

Code:55097RED

Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond.

Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts, and clearance for up to 50mm tires (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.

Features:

  • Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
  • Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer

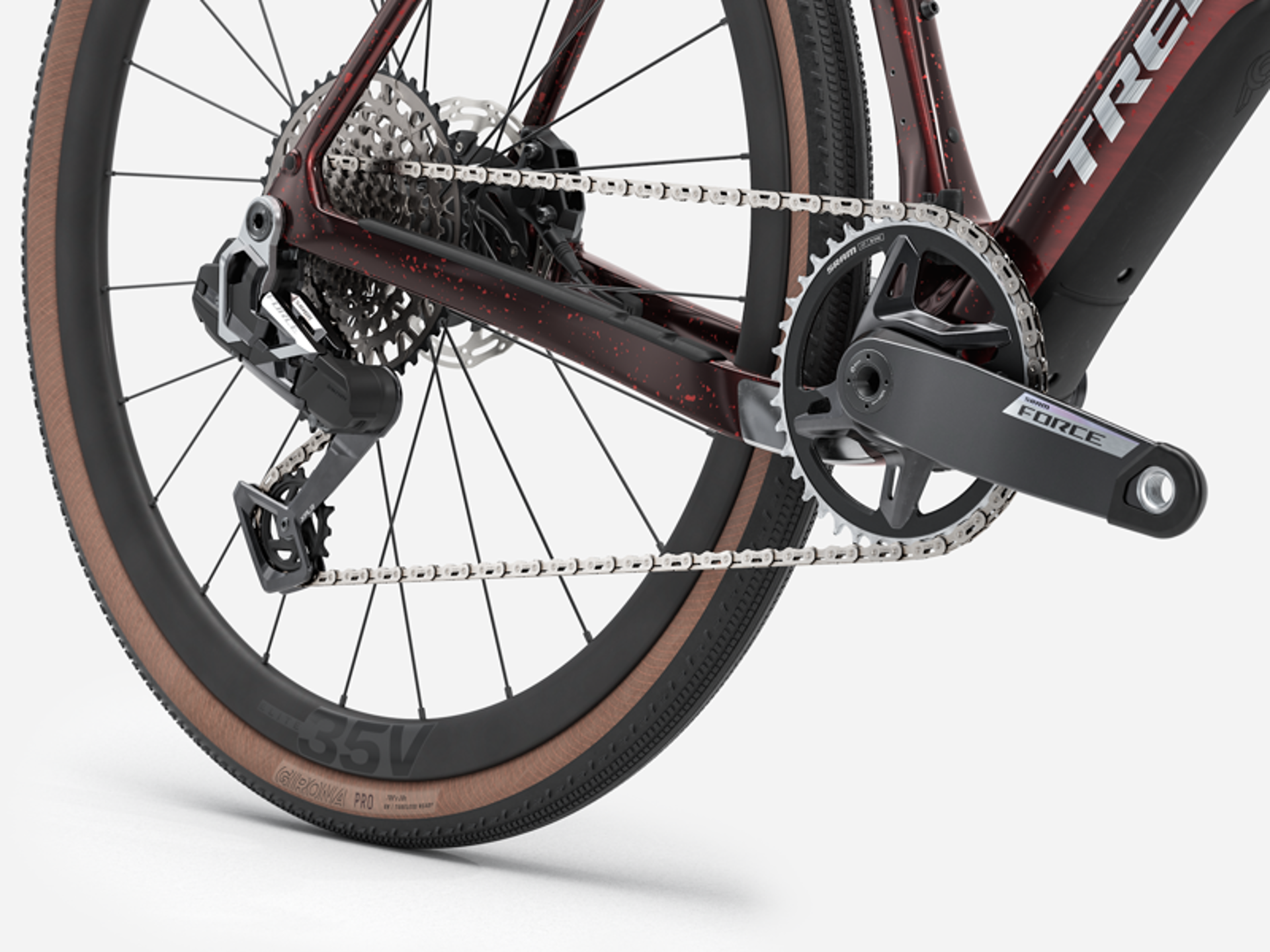

  • You get upgrades that matter – like the carbon Bontrager Aeolus Elite 35V wheels and SRAM Force AXS E1 wireless electronic 13-speed drivetrain
  • Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy roads and stretches of singletrack
  • You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
  • Fork
    Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
  • Max compatible fork travel
    40mm (XS: compatible with rigid fork only)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg)
  • Battery
    SRAM AXS battery pack (with charger)
  • Shifter
    SRAM Force AXS, 13 speed
  • Rear derailleur
    SRAM Force XPLR AXS, 46T max cog
  • Crank
    XS, S: SRAM Force XPLR, 40T, DUB Wide, 165mm length Size: M: SRAM Force XPLR, 40T, DUB Wide, 170mm length ML, L: SRAM Force XPLR, 40T, DUB Wide, 172.5mm length XL: SRAM Force XPLR, 40T, DUB Wide, 175mm length
  • Bottom bracket
    SRAM DUB Wide, T47 threaded, internal bearing
  • Cassette
    XS, S, M, ML, L, XL: SRAM Force XPLR, 10-46, 13 speed XS, S, M, ML, L, XL: SRAM XG-1271, 10-44, 12 speed
  • Chain
    SRAM Force E1, 12/13 speed
  • Max chainring size
    1x:44 2x: 46/30
  • Wheel front
    Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
  • Wheel rear
    Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle, removable lever
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tire
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
  • Tire part
    Bontrager TLR sealant, 6oz
  • Rim strip
    Bontrager TLR
  • Max tire size
    50mm without fenders, 42mm with fenders (as measured, see manual for details)
  • Saddle
    Verse Short Elite, hollow magnesium rails, 145mm width
  • Seatpost
    Bontrager carbon, 27.2mm, 8mm offset, 330mm length

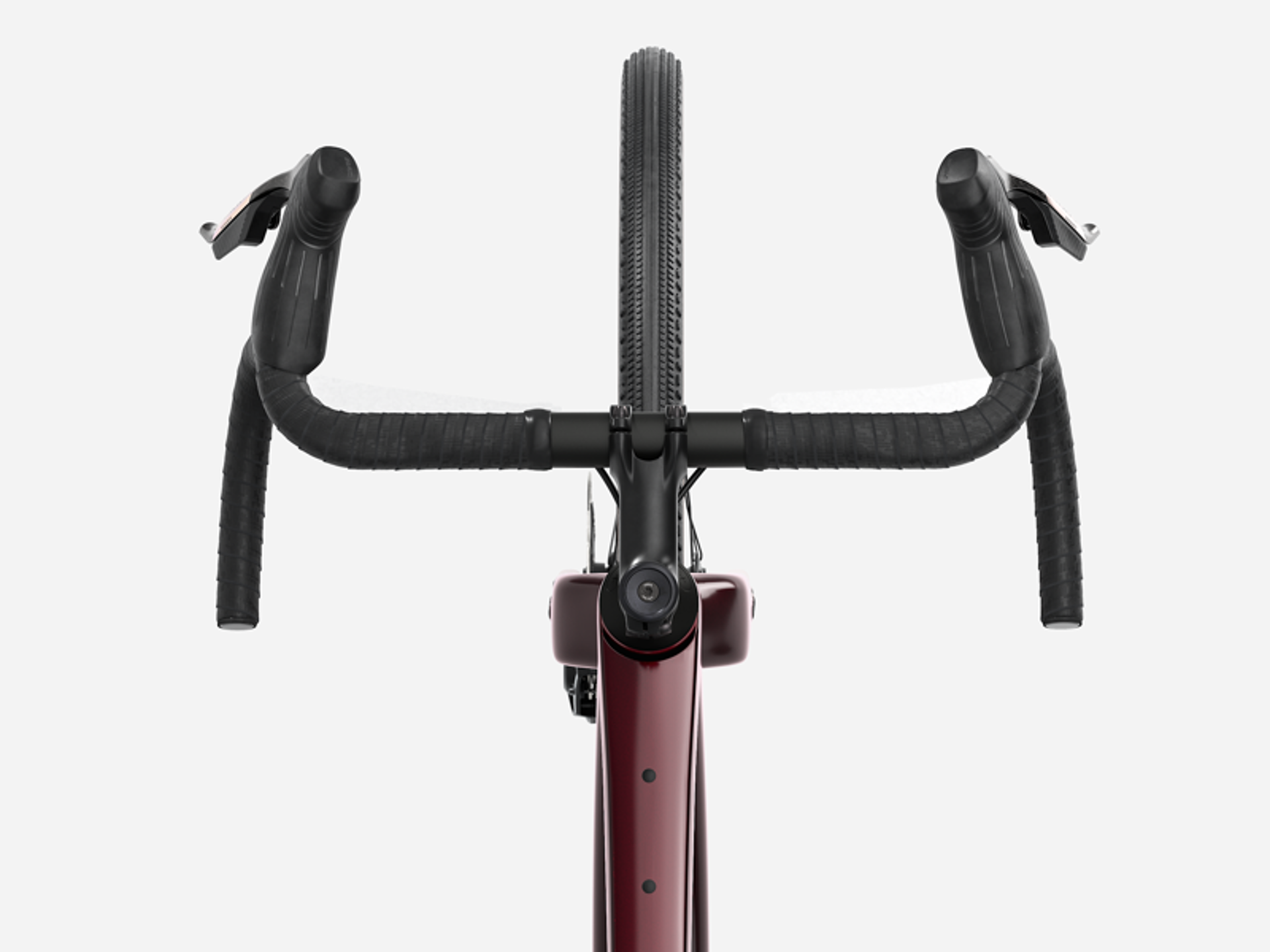

  • Handlebar
    XS, S: Bontrager Pro Gravel, 40cm width M, ML: Bontrager Pro Gravel, 42cm width L: Bontrager Pro Gravel, 44cm width XL: Bontrager Pro Gravel, 46cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    XS: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length S, M: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length ML, L: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length XL: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
  • Brake
    SRAM Force AXS hydraulic disc, flat mount
  • Brake rotor
    XS, S, M, ML, L, XL: SRAM CenterLine X, centerlock, round edge, 160mm XS, S, M, ML, L, XL: SRAM Paceline X, rounded, centerlock, 160mm
  • Rotor size
    Max brake rotor sizes: 180mm front & rear
  • Bag
    Bontrager BITS Internal Frame Storage Bag
Sizing Information
