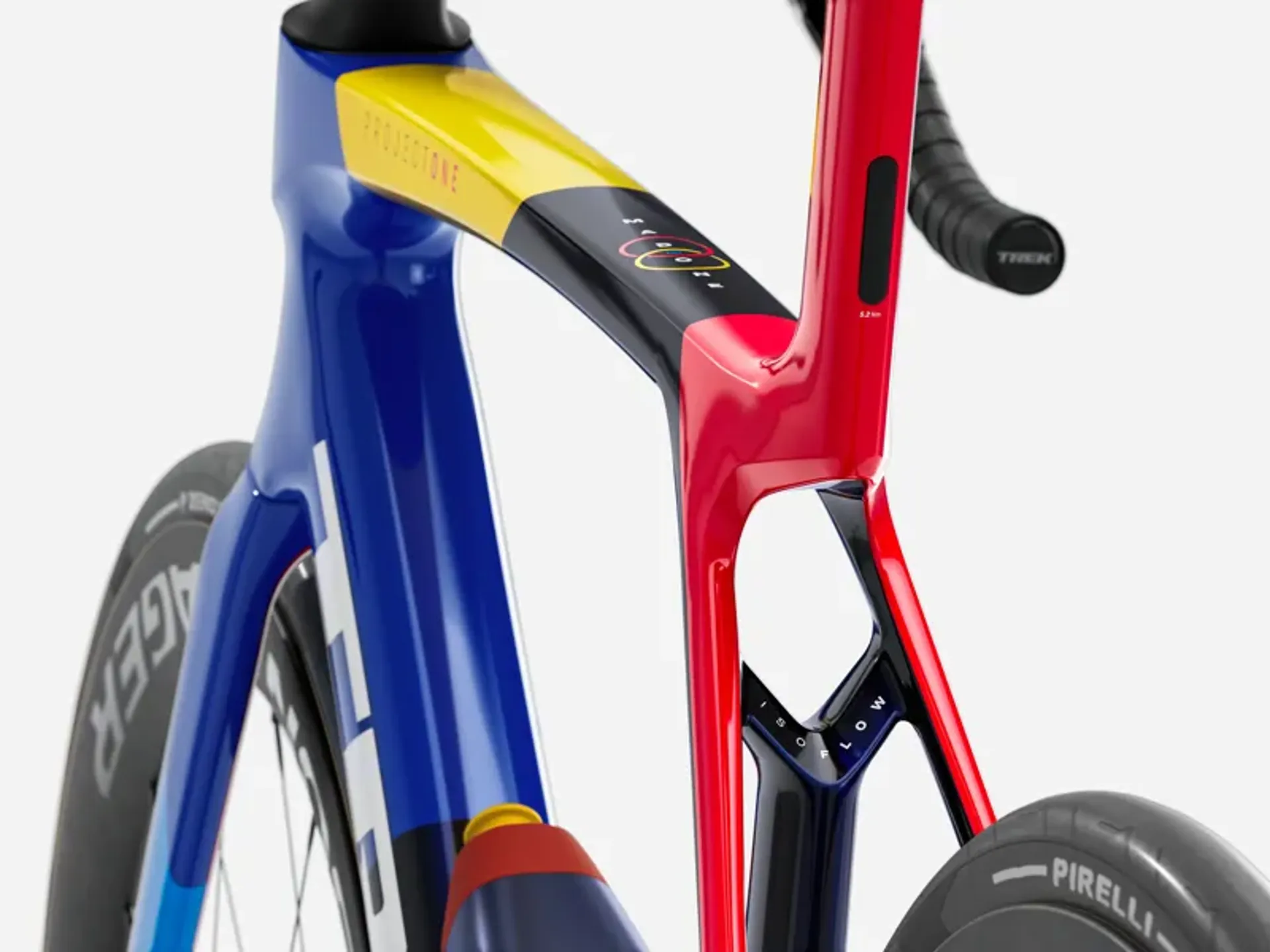

Frame with Fork - 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork - Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery - SRAM eTap battery pack (with charger)
Shifter - SRAM Force AXS, 12-speed
Front derailleur - SRAM Force AXS, braze-on
Rear derailleur - SRAM Force AXS, 36T max cog

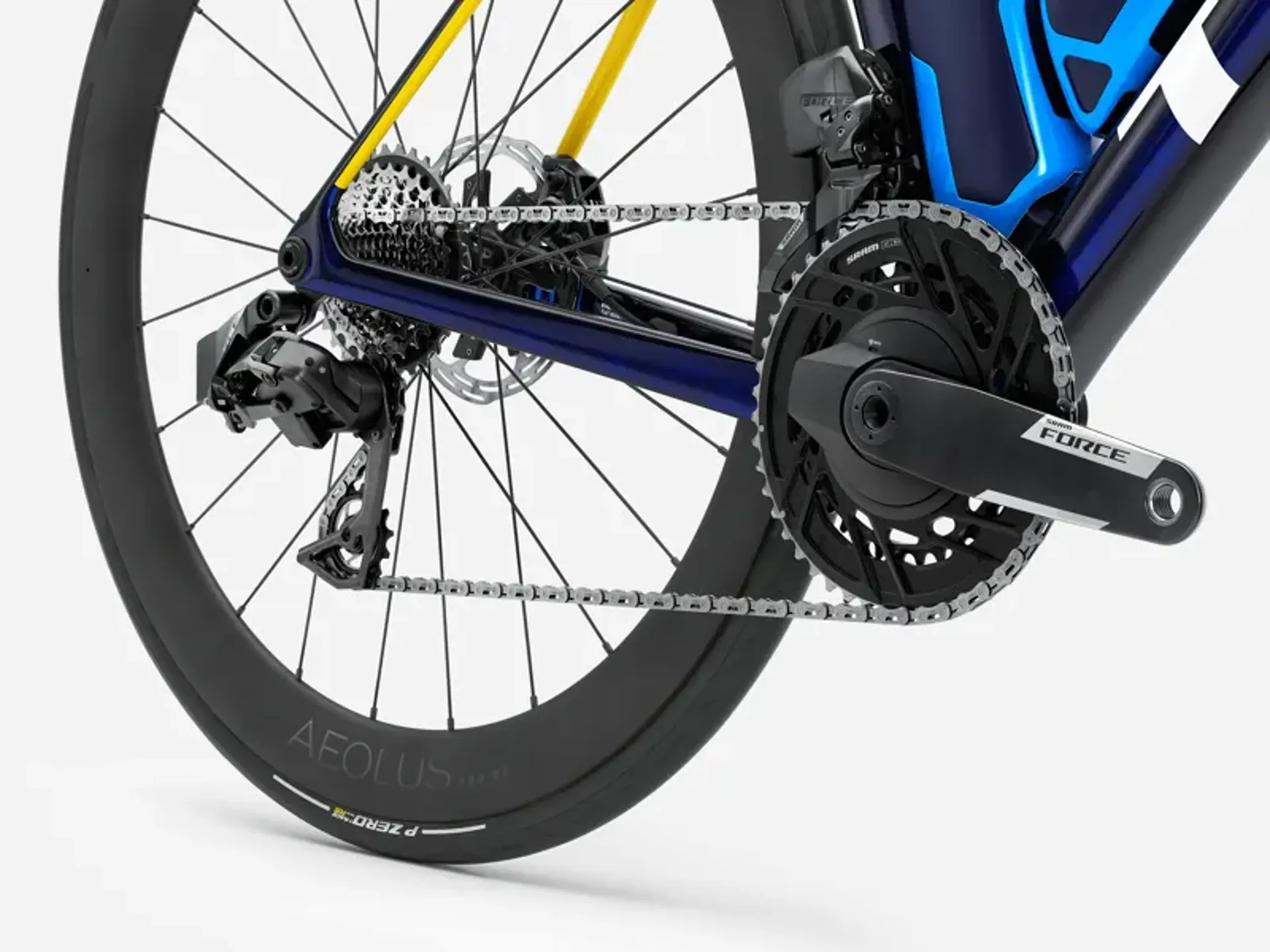

*Crank - Size: XS, S, SRAM Force AXS with power meter, 48/35, DUB, 165 mm length
Size: M, ML, SRAM Force AXS with power meter, 48/35, DUB, 170 mm length
Size: L, XL, SRAM Force AXS with power meter, 48/35, DUB, 172.5 mm length
Bottom bracket - SRAM DUB, T47 threaded, internal bearing
Cassette - SRAM Force XG-1270, 10-33, 12-speed
Chain - SRAM Force E1, 12/13-speed
Max. chainring size - 1x: 54T, 2x: 56/43
Wheel front - Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear - Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
Skewer front - Bontrager Switch chamfered thru axle, removable lever
Skewer rear - Bontrager Switch chamfered thru axle, removable lever
Tyre -Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm/
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
Tube - Pirelli P Zero SmarTube, TPU
Max tyre size - 32mm (as measured, see manual for details)
Saddle - Bontrager Aeolus Pro, carbon rails, 145 mm width
Seatpost - Madone aero carbon seat post, 0 mm offset, short length

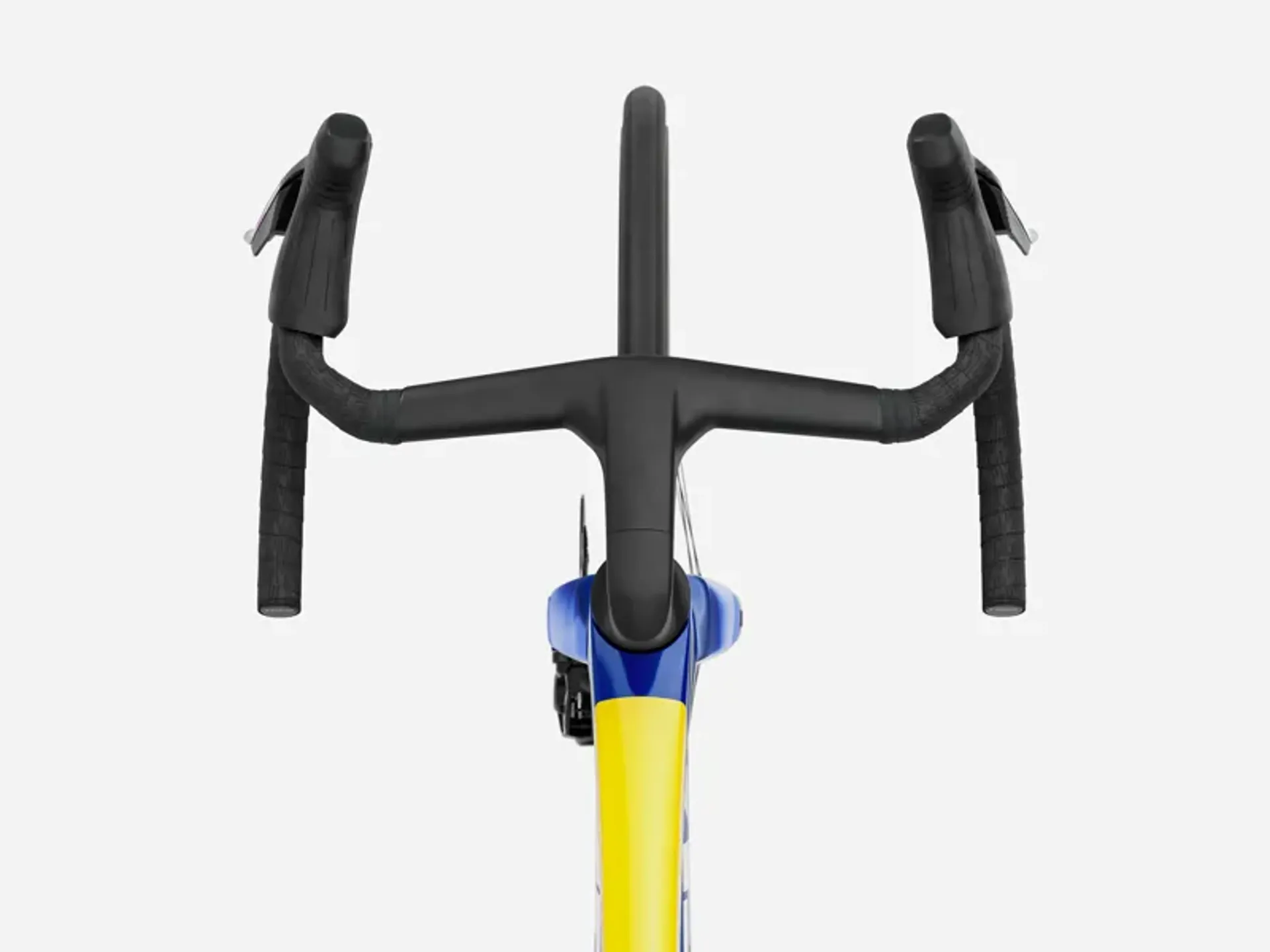

Handlebar/stem (integrated) - Size: XS, Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S, Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M, Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L, Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL ,Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape - Trek EcoTack
Brake - SRAM Force AXS hydraulic disc, flat mount
Brake rotor - SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size - Max brake rotor sizes: 180 mm front, 160 mm rear
