Trek

2026 Trek Checkout SL 5 Carbon Gravel Bike in Dark Star Dark Web Black

£4,500.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

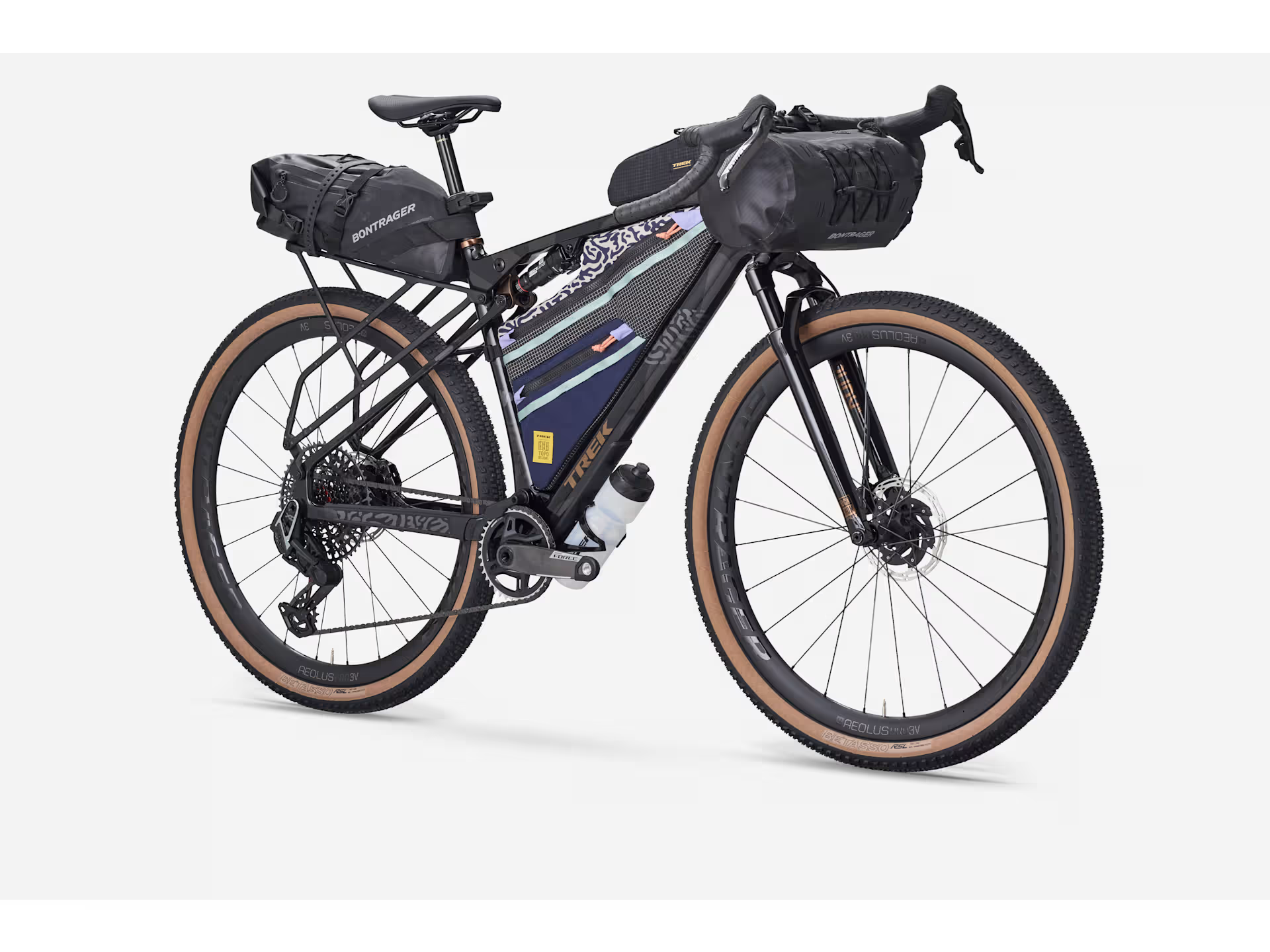

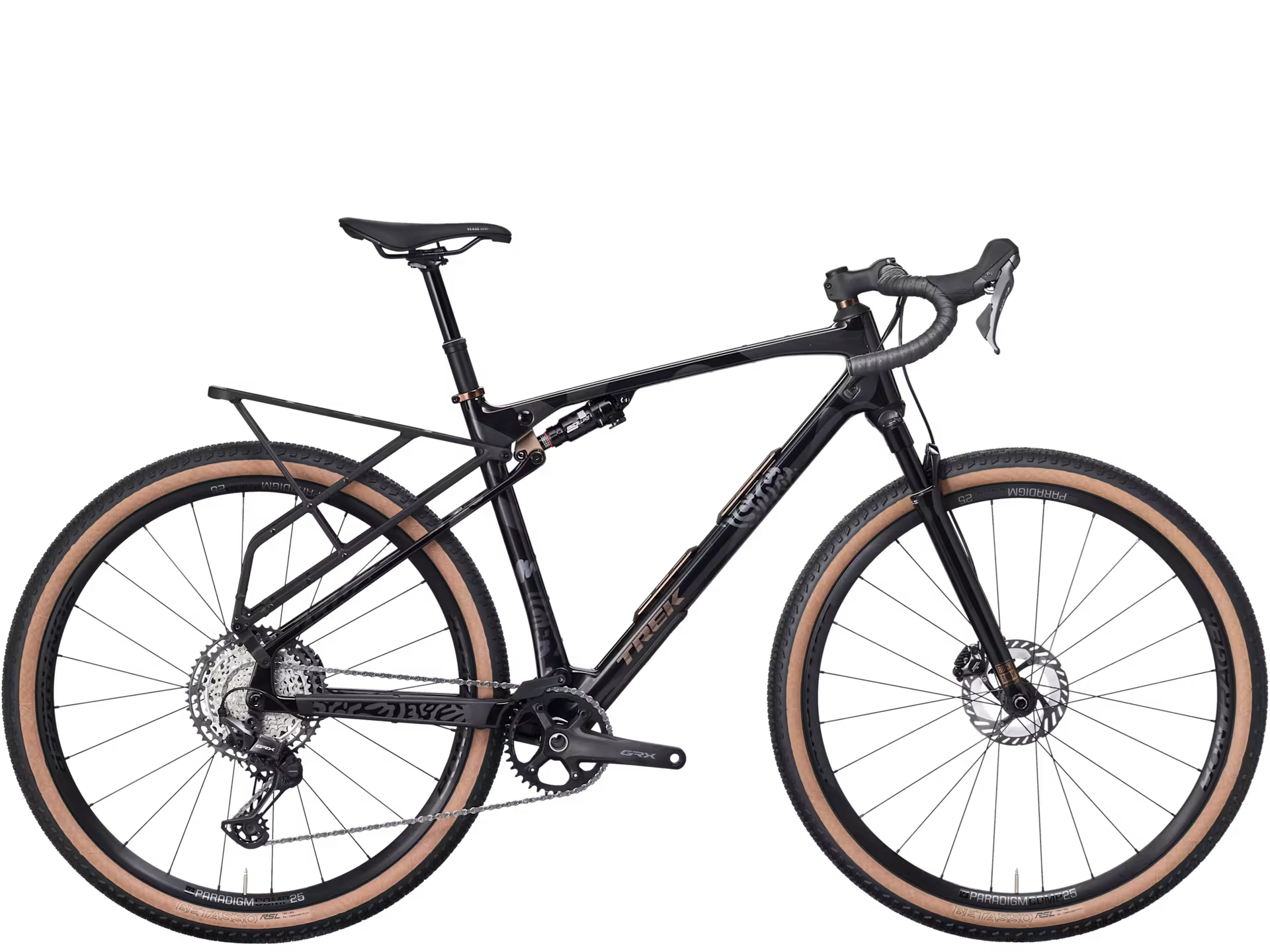

2026 Trek Checkout SL 5 Carbon Gravel Bike in Dark Star Dark Web Black

Season:2026

Brand:Trek

Code:57827BLK

The checkout sl 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a Rockshox sidluxe isostrut shock, while a Rockshox rudy xl fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with bontrager paradigm comp wheels, a 12-speed Shimano grx drivetrain and tranzx dropper post
Technical Information
Frame - 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel
Fork - RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
Shock - RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm
Weight - ML - 11.97 kg / 26.39 lbs (with TLR sealant, no tubes, excluding rear rack)
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Rear derailleur - Shimano GRX RX822, 51T max cog
Crank - Size: S Shimano GRX RX610, 38T, 160 mm length
Size: M, ML Shimano GRX RX610, 38T, 170 mm length
Size: L, XL Shimano GRX RX610, 38T, 172.5 mm length
Bottom - Praxis, T47 threaded, internal bearing
Cassette - Shimano XT M8200, 10-51, 12-speed
Chain - Shimano XT M8100, 12-speed
Max. chainring size - 1x: 38T
Wheel front - Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Skewer rear - Bontrager Switch chamfered thru axle, removable lever
Rim - Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Tyre - Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50 mm
Tyre part - Bontrager TLR sealant, 180 ml/6 oz
Rim strip - Bontrager TLR
Max tyre size - 56 mm/2.20" (as measured, see manual for details)
Saddle - Verse Short Comp, steel rails, 145 mm width
Seatpost - TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
Handlebar - Size: S Bontrager GR Checkout, 42 cm
Size: M Bontrager GR Checkout, 44 cm
Size: ML, L Bontrager GR Checkout, 46 cm
Size: XL Bontrager GR Checkout, 48 cm
Handlebar tape - Bontrager Supertack Perf tape
Stem - Size: S, M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: ML, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Rotor size - Max brake rotor sizes: 180 mm front and rear
Cargo rack - Checkout rear rack
