The Emonda ALR 5 Disc is a super light and responsive alloy road race bike.
The Emonda ALR 5 Disc is a super light and responsive alloy road race bike.
Trek

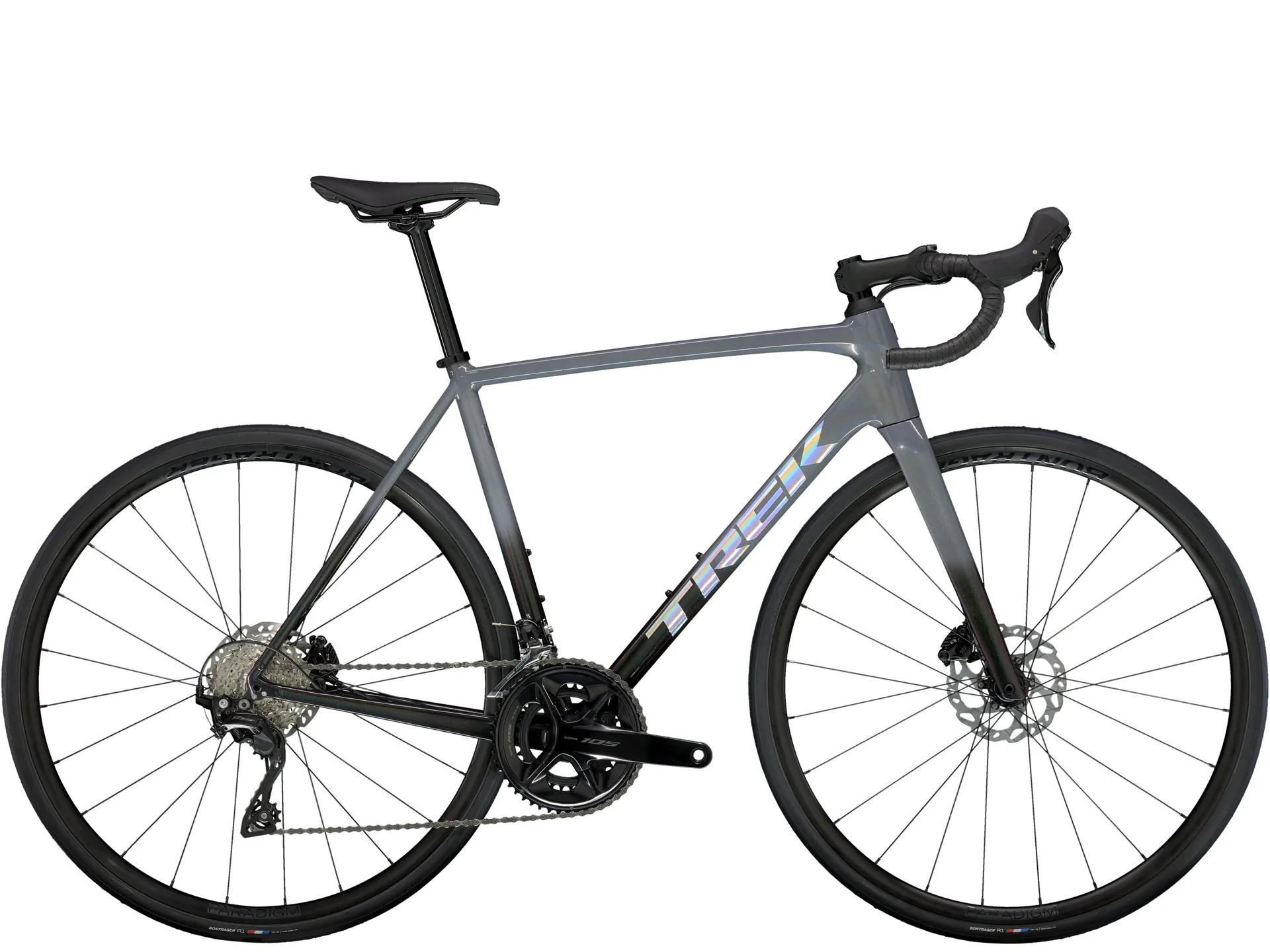

Trek Emonda ALR 5 Road Bike In Slate Prismatic/Black Prismatic Fade

£2,150.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Emonda ALR 5 Road Bike In Slate Prismatic/Black Prismatic Fade

Season:2024

Brand:Trek

Code:41426GRY

The Emonda ALR 5 Disc is a super light and responsive alloy road race bike.

Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

You want all the advantages of a bike built to for featherweight performance in a wallet-friendly alloy frame that has the sleek looks and handling you'd expect only from a carbon frame, and the confident stopping power that disc brakes provide.

An ultra-light 300 Series Alpha Aluminium frame with Kammtail shaped tubes for increased aerodynamics, Invisible Weld Technology, an Émonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2x12 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes and tubeless-ready wheels.

An advanced alloy frame that looks and performs like carbon and a reliable Shimano 105 drivetrain give this race-ready ride an incredible amount of versatility.

Features:
  • This ultra-light alloy frame is designed for racing and packs in super tidy cable routing
  • It climbs fast, corners on rails, and descends with confidence
  • Kammtail tube shapes help make the Émonda ALR even faster than before
  • It shares the geometry of our highest-end carbon Émonda racing bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
  • Internal cable routing extends the life of your cables and adds to the bike's sleek look


Technical Information
  • Frameset
  • Frame
    Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
  • Fork
    Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm thru axle
  • Weight
  • Weight
    56 - 9.17 kg / 20.22 lbs (with tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Drivetrain
  • Shifter
    Shimano 105 R7120, 12-speed
  • Front derailleur
    Shimano 105 R7100, braze-on, down swing
  • Rear derailleur
    Shimano 105 R7100, 36T max cog
  • *Crank
  • Size: 47
    Shimano 105 R7100, 50/34, 165 mm length
  • Size: 50, 52
    Shimano 105 R7100, 50/34, 170 mm length
  • Size: 54, 56, 58
    Shimano 105 R7100, 50/34, 172.5 mm length
  • Size: 60, 62
    Shimano 105 R7100, 50/34, 175 mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano 105 7101, 11-34, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Max. chainring size
    1x: 48T, 2x: 53/39
  • Wheels
  • Wheel front
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
  • Wheel rear
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
  • Hub front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch thru-axle, removable lever
  • Hub rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Tyre
    Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
  • Max tyre size
    28mm
  • Components
  • *Saddle
  • Size: 47, 50, 52
    Verse Short Comp, steel rails, 155 mm width
  • Size: 54, 56, 58, 60, 62
    Verse Short Comp, steel rails, 145 mm width
  • *Seatpost
  • Size: 47
    Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
  • Size: 50, 52, 54, 56, 58, 60, 62
    Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
  • *Handlebar
  • Size: 47, 50
    Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
  • Size: 52
    Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
  • Size: 54, 56, 58
    Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
  • Size: 60, 62
    Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • *Stem
  • Size: 47
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Size: 50
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size: 52, 54
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size: 56, 58
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Size: 60, 62
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
  • Brake
    Shimano 105 hydraulic disc
  • Brake rotor
    Shimano RT70, CentreLock, 160 mm
  • Rotor size
    Max brake rotor sizes: 160mm front & rear
