The Checkpoint SL 5 is a carbon gravel bike made for epic adventures.
The Checkpoint SL 5 is a carbon gravel bike made for epic adventures.
Trek

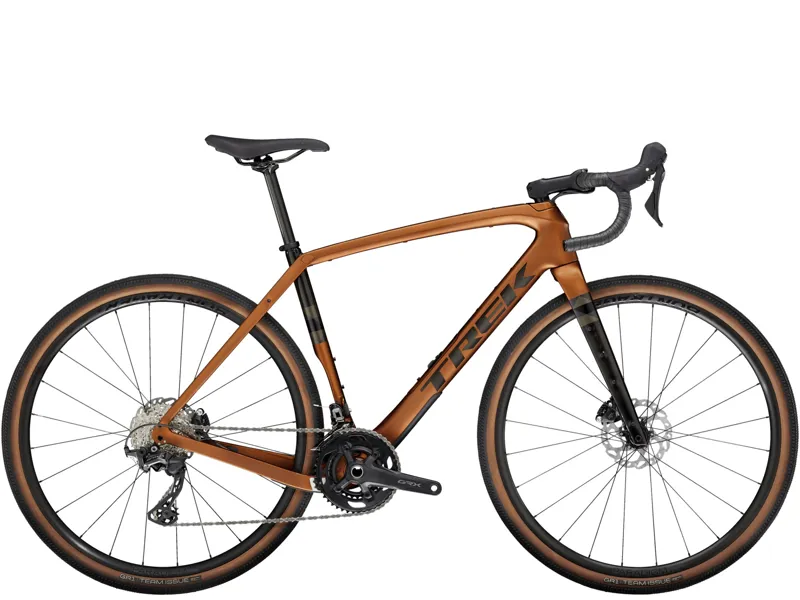

Trek Checkpoint SL 5 Gravel Bike in Matte Pennyflake

£3,325.00 £3,500.00 5% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Checkpoint SL 5 Gravel Bike in Matte Pennyflake

Season:2024

Brand:Trek

Code:41398ORG

The Checkpoint SL 5 is a carbon gravel bike made for epic adventures.

It's built with lightweight OCLV Carbon, a 2x12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

Features:

  • It's equipped with rugged, gravel-focused 2x12 Shimano GRX drivetrain that's made for tackling the roads less travelled
  • Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
  • Fork mounts, frame mounts, and rack and mudguard mounts allow you to carry all the gear you need for day trips and bikepacking adventures
  • A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  • The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
  • Fork
    Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Shifter
    Shimano GRX RX610, 12-speed
  • Front derailleur
    Shimano GRX RX820, braze-on, down swing
  • Rear derailleur
    Shimano GRX RX820, 36T max cog
  • Crank
    Size: 49
    Shimano GRX RX610, 46/30, 165 mm length
    Size: 52
    Shimano GRX RX610, 46/30, 170 mm length
    Size: 54, 56
    Shimano GRX RX610, 46/30, 172.5 mm length
    Size: 58, 61
    Shimano GRX RX610, 46/30, 175 mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano 105 7100, 11-36, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Max. chainring size
    1x: 46T, 2x: 50/37
  • Wheel front
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12mm thru axle
  • Wheel rear
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 thru axle
  • Hub front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Hub rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Tyre
    Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager Aeolus XXX rim strip
  • Max tyre size
    700x45 mm / 650x2.10"
  • Saddle
    Size: 49, 52
    Bontrager Verse Comp, steel rails, 155 mm width
    Size: 54, 56, 58, 61
    Bontrager Verse Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar
    Size: 49
    Bontrager Elite Gravel, 38 cm width
    Size: 52
    Bontrager Elite Gravel, 40 cm width
    Size: 54, 56
    Bontrager Elite Gravel, 42 cm width
    Size: 58, 61
    Bontrager Elite Gravel, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: 49
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
    Size: 52, 54
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 56, 58
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 61
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Brake
    Shimano RX410 hydraulic disc, flat mount
  • Brake rotor
    Shimano RT70, CentreLock, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
