Frame
800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
-
Fork
Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
-
Battery
SRAM AXS battery pack (with charger)
-
Shifter
SRAM Force AXS, 13 speed
-
Rear derailleur
SRAM Force XPLR AXS, 46T max cog
-
Crank
XS, S: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165mm length
M, ML: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170mm length
L, XL: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5mm length
-
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
-
Cassette
SRAM Force XPLR XG-1371, 10-46, 13 speed
-
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
-
Wheel rear
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle
-
Skewer front
Bontrager Switch chamfered thru axle, removable lever
-
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
-
Tire
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
-
Tire part
Bontrager TLR sealant, 6oz
-
Rim strip
Bontrager TLR
-
Max tire size
45mm without fenders, 38mm with fenders (as measured, see manual for details)
-
Seatpost
KVF aero carbon seatpost, 5mm offset, 280mm length
-

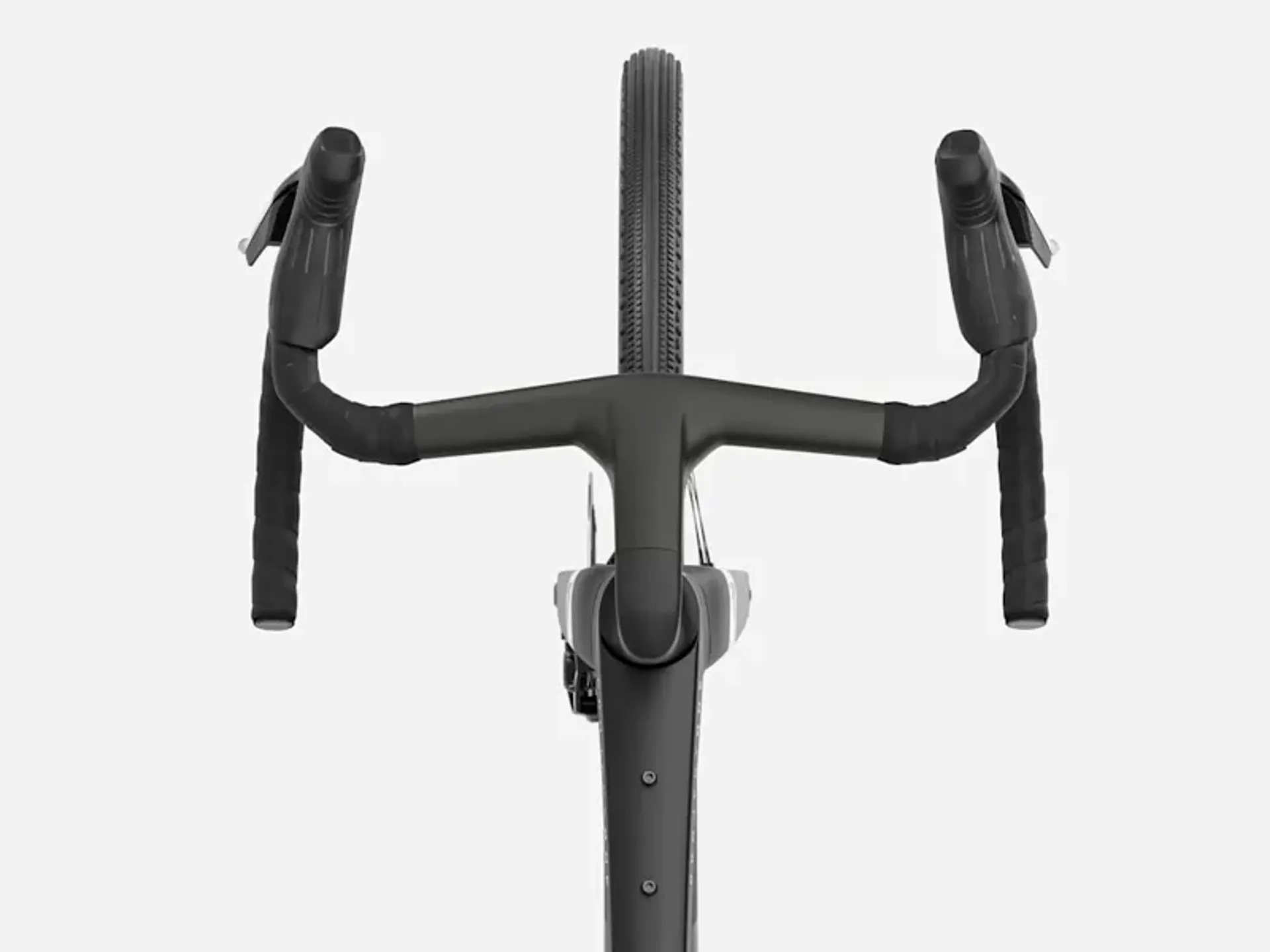

Handlebar/stem (integrated)
XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length
S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length
M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length
XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
-
Handlebar tape
Trek EcoTack
-
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
-
Rotor size
Max brake rotor sizes: 180mm front & rear
