The Fuel EX 9 Eagle 90 is a confident trail bike featuring an Alpha NEXT Platinum aluminium frame, RockShox suspension, and SRAM Eagle 90 transmission.
The Fuel EX 9 Eagle 90 is a confident trail bike featuring an Alpha NEXT Platinum aluminium frame, RockShox suspension, and SRAM Eagle 90 transmission.
Trek

Trek Fuel EX 9 Eagle 90 Gen 7 Mountain Bike in Matte Sedona Red/Pennyflake Splatter

£4,925.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Fuel EX 9 Eagle 90 Gen 7 Mountain Bike in Matte Sedona Red/Pennyflake Splatter

Season:2026

Brand:Trek

Code:56047RED

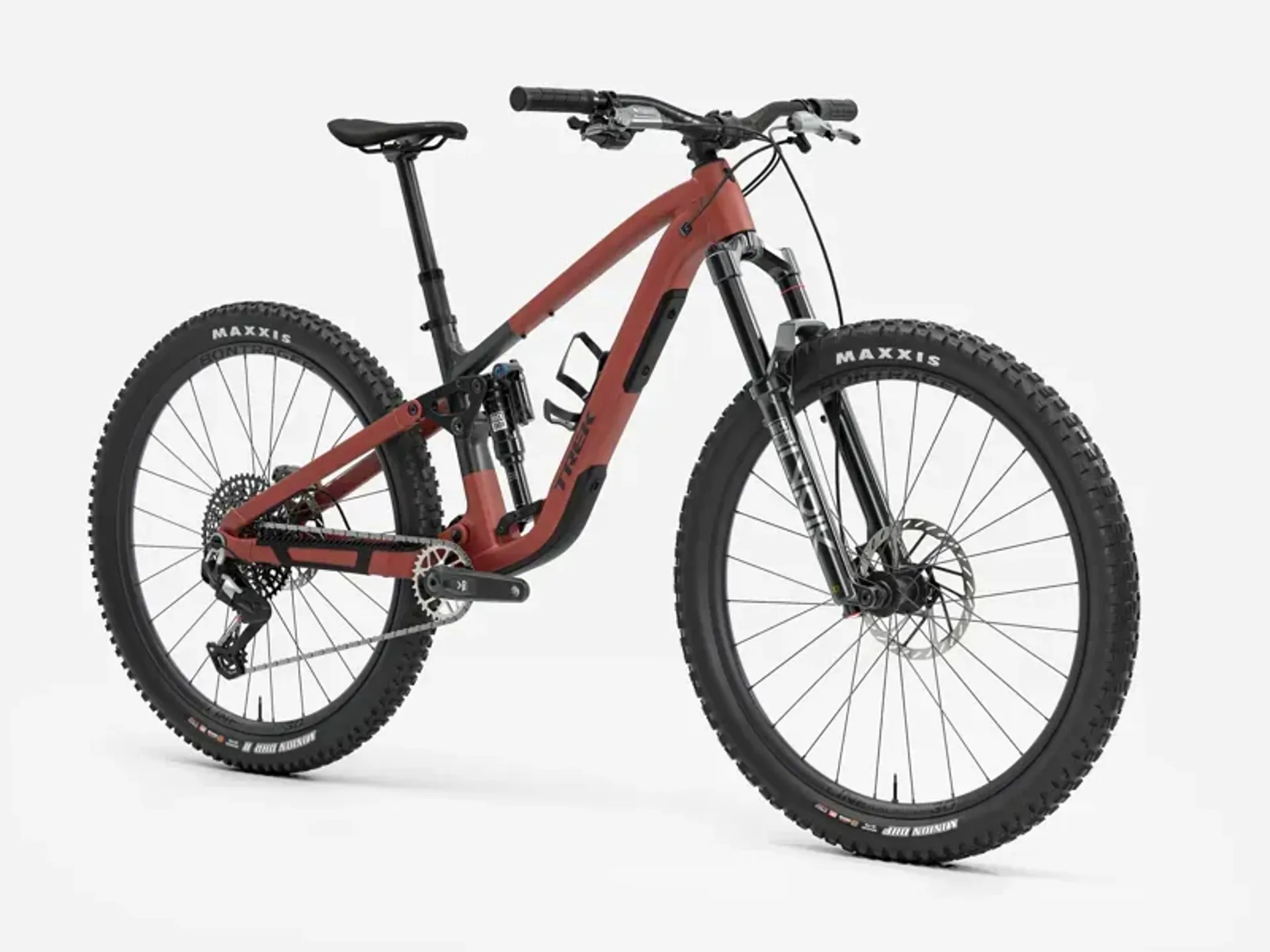

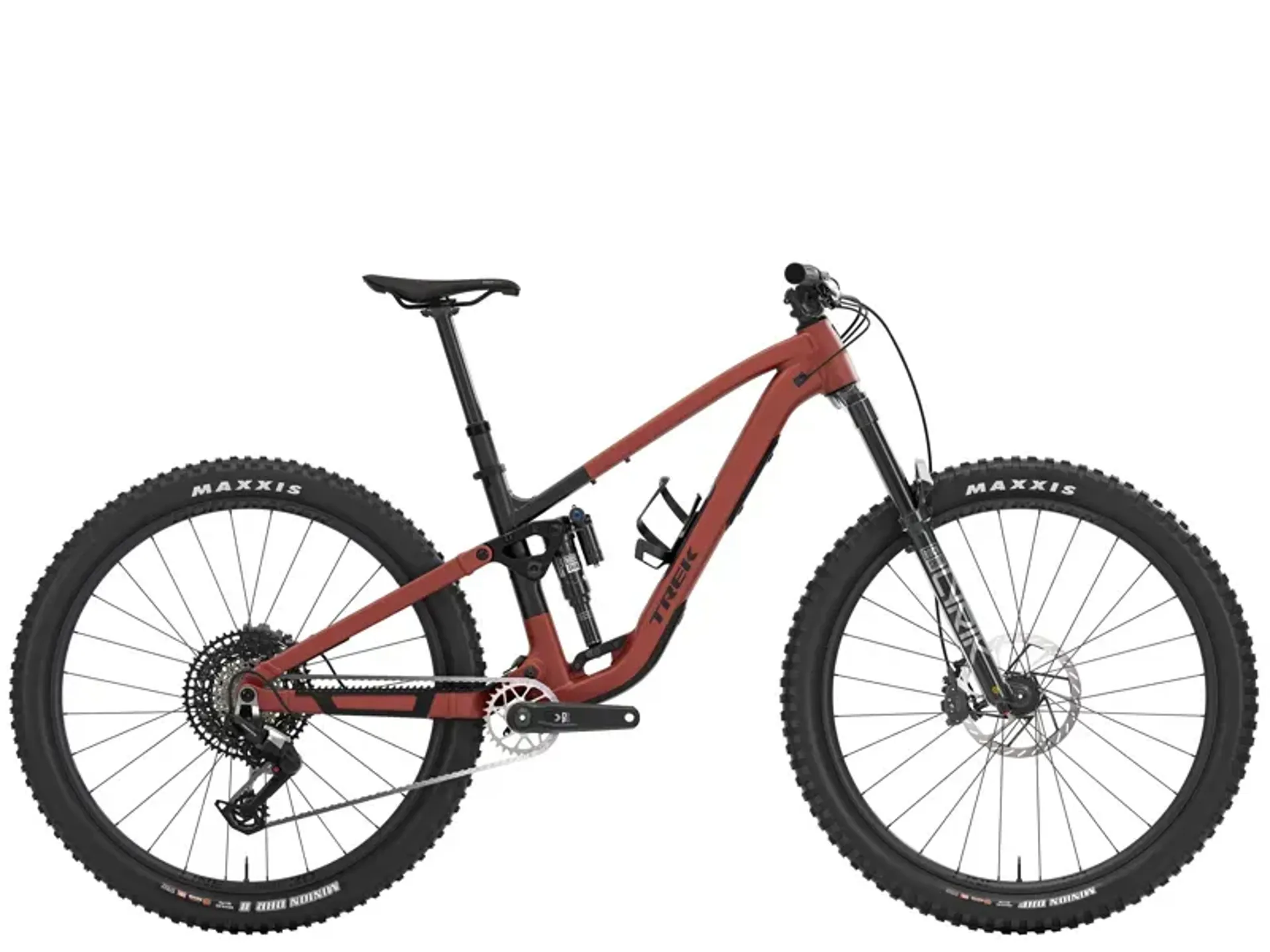

The Fuel EX 9 Eagle 90 is a confident trail bike made to rip into just about anything.

It starts with an Alpha NEXT Platinum aluminium frame with a RockShox Lyrik Ultimate fork and Deluxe Ultimate RC2T shock (150 mm front, 145 mm rear) for confident handling on any trail. A SRAM Eagle 90 transmission gives you fuss-free mechanical shifting that stays smooth under load, while SRAM Maven Bronze 4-piston brakes deliver incredible power for quick stops after steep descents.

Only you can define your perfect trail bike; that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

Stash ride essentials with in-frame storage on all Fuel models, both carbon and alloy. Plus, top tube accessory mounts let you load up even more. The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, and frame bags.

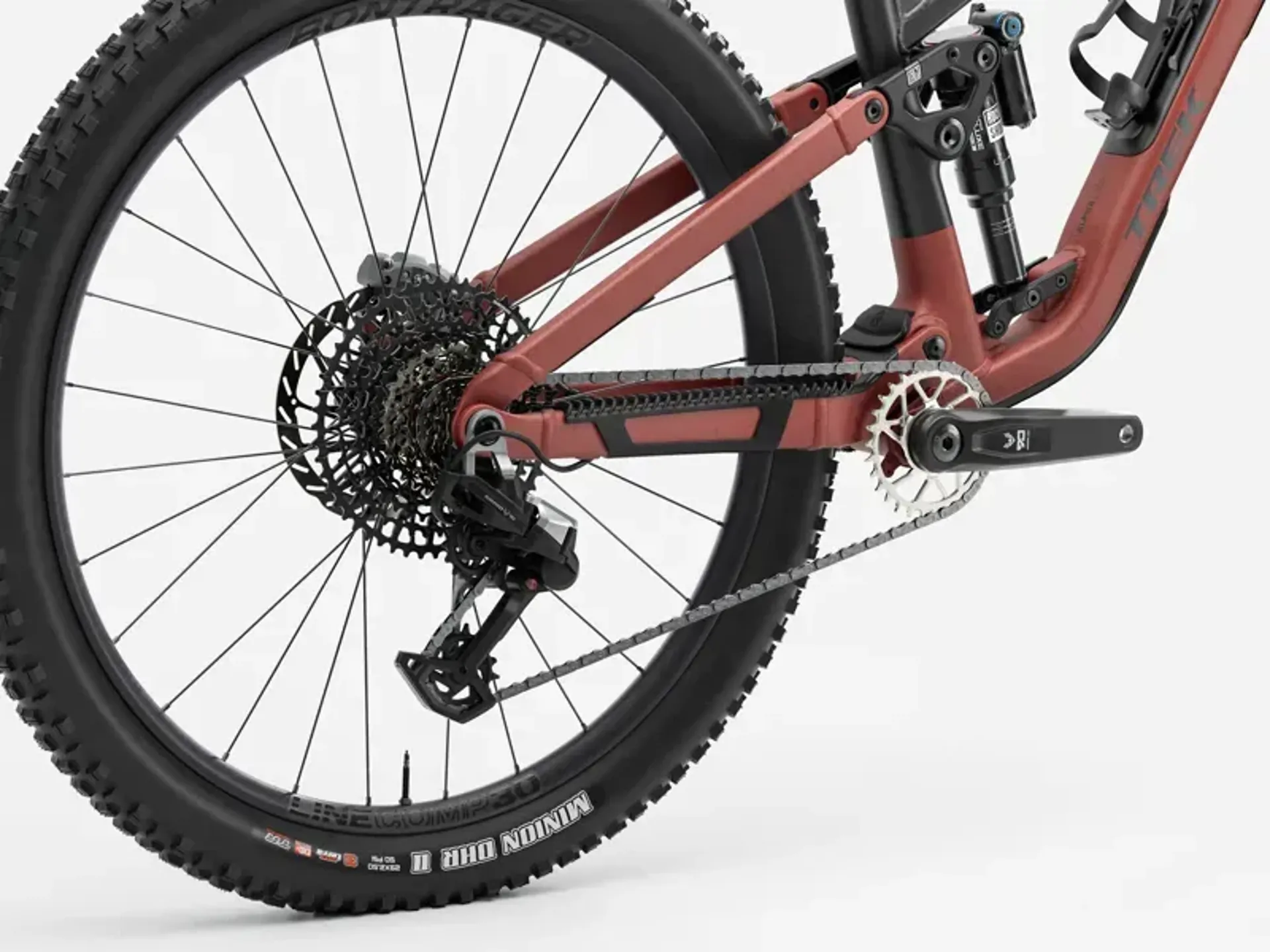

The SRAM Eagle T-Type transmission mounts directly to the frame, skipping the pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner-looking, it's also more precise under load and easier to set up.

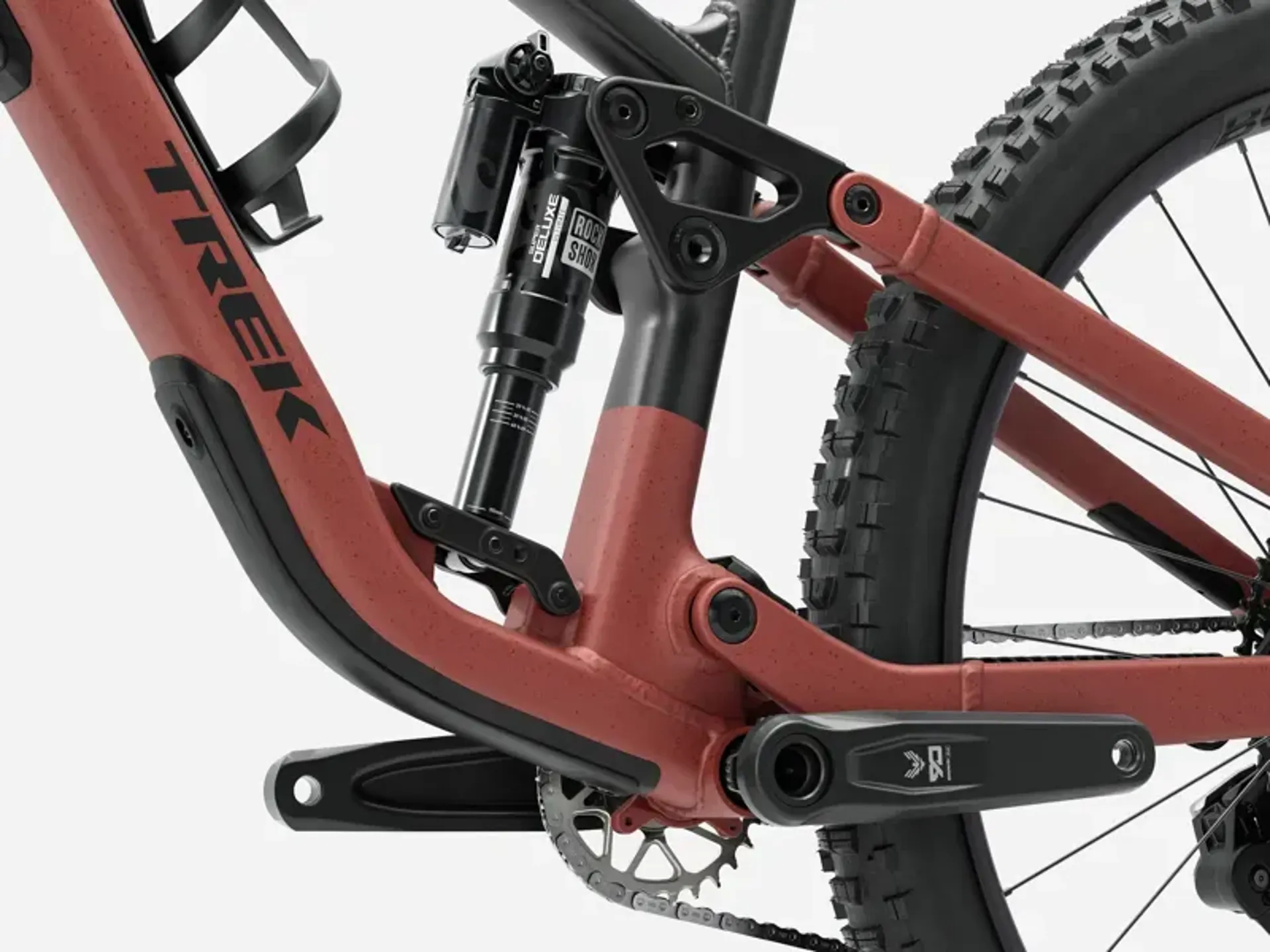

Active Braking Pivot allows Trek's engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Features:

  • Adjustable leverage rate: Flip the chip in the lower shock mount for a more progressive leverage rate if you want more bottom-out resistance without giving up small-bump sensitivity.
  • Zero Stack integrated headset: With a ZS standard headset, you have loads of options for aftermarket upgrades, including angle adjust.
Technical Information
  • Frame
    Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Fork
    RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
  • Shock
    RockShox Deluxe Ultimate RC2T, 205 mm x 60 mm
  • Wheel front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
  • Wheel rear
    Size S: Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5''; Sizes M, L, XL: Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29"
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Tyre
    Sizes S, M, L, XL: Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''; Size S: Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''; Sizes M, L, XL: Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer
  • Shifter
    SRAM Eagle 90, 12-speed
  • Rear derailleur
    SRAM Eagle 90, T-Type
  • Crank
    SRAM Eagle 90, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
  • Bottom bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, T-Type, 12-speed
  • Max. chainring size
    Max: 34T (oval – 32T) Min: 30T (oval – 32T)
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Size S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length; Size M: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length; Sizes L, XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
  • Handlebar
    Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
  • Grips
    Trek Line Elite, lock-on
  • Stem
    Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Brake
    SRAM Maven Bronze 4-piston hydraulic disc
  • Brake rotor
    Sizes S, M, L, XL: SRAM HS2, 6-bolt, 200mm; Sizes S, M, L, XL: SRAM HS2, 6-bolt, 180mm
  • Rotor size
    Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
  • Weight
    M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information
Professional Opinion
