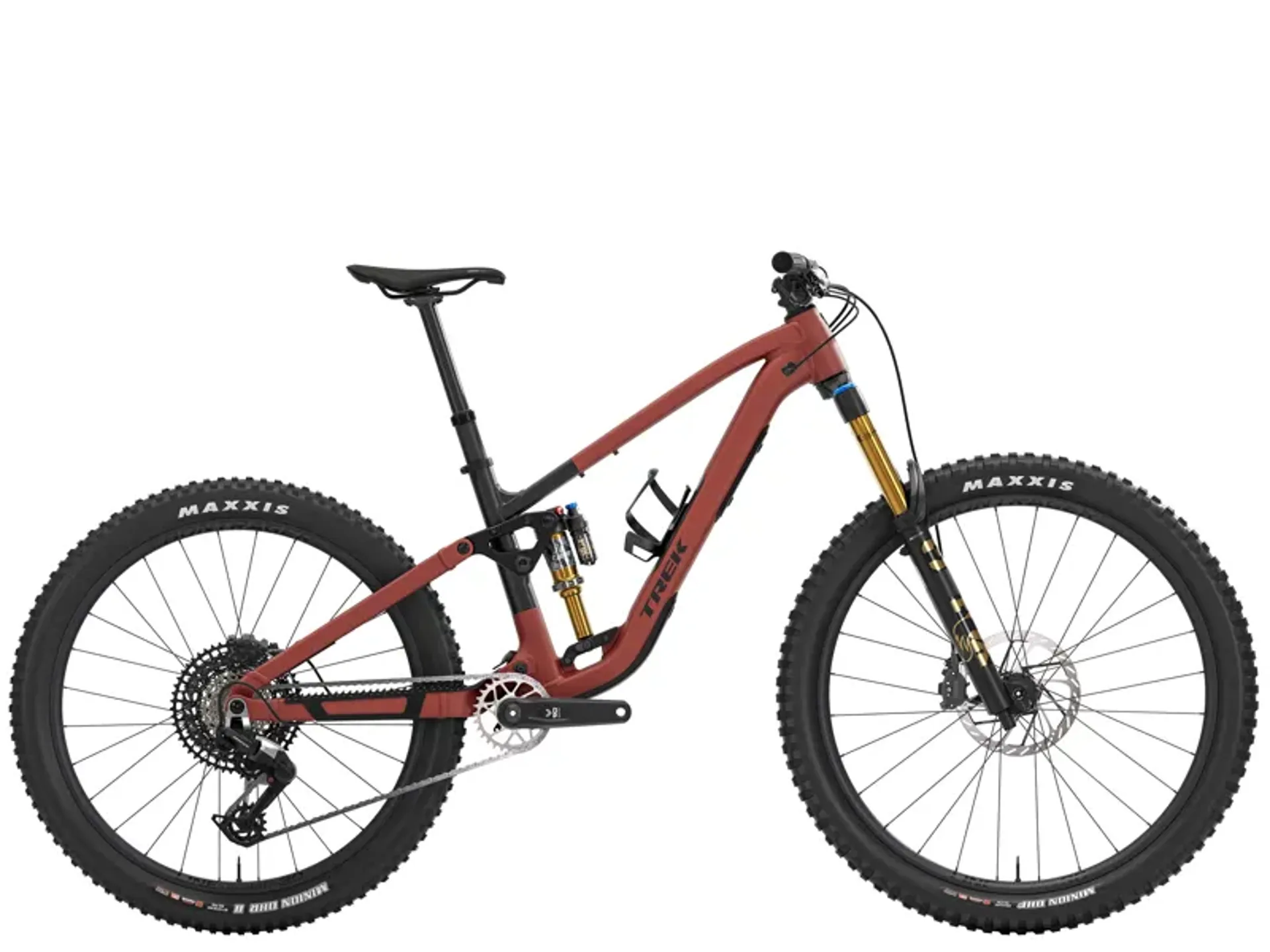

2026 Trek Fuel MX 9 SRAM EA90 Mountain Bike Sedona Red Pennyflake

Season:2026

Brand:Trek

Code:56026RED

The fuel mx 9 eagle 90 is a playful trail bike made for hunting down side hits. Its alpha next platinum aluminium frame it paired with a Fox factory suspension package (150 mm rear, 160 mm front) and mx wheels for a ride that's flickable and zippy. It comes ready to rip with a fuss-free SRAM eagle 90 mechanical transmission that keeps shifts smooth under load and SRAM maven bronze 4-piston brakes for stopping power.

Adapt, rip, repeat - only you can define your perfect trail bike that's why fuel is available in three adjustability-packed configurations. Get do-it-all capability with ex, go pop-happy with mx or charge through it all with lx.

Adjustable leverage rate - Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

Zero stack integrated headset- With a zs standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.

Storage and accessory mounts - Stash ride essentials with in-frame storage on all fuel models both carbon and alloy. Plus, top tube accessory mounts let you load up even more.

Fresh frame design - the fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.

Active braking pivot - active braking pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most
Technical Information
Mainframe - Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork - Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel
Shock - Fox Factory Float X, 205 mm x 60 mm

Wheels - Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle
Rear Skewer - Bontrager Switch thru-axle, removable lever
Tire - Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Tire Part - Bontrager TLR sealant, 180 ml/6 oz
Max tyre size - Frame: 29x2.50", Fork: See manufacturer
Shifter - SRAM Eagle 90, 12-speed
Rear Derailleur - SRAM Eagle 90, T-Type
Crank - SRAM Eagle 90, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
Bottom Bracket - SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette - SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
Chain - SRAM GX Eagle, T-Type, 12-speed
Max. chainring size - Max: 34T (oval – 32T) Min: 30T (oval – 32T)
Saddle - Verse Short Comp, steel rails, 145 mm width
Seatpost - Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Size: XL, L Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Handlebar - Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Grips - Trek Line Elite, lock-on
Stem - Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake - SRAM Maven Bronze 4-piston hydraulic disc
Brake Rotor - SRAM HS2, 6-bolt, 180mm
Rotor size - Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
Weight - M - 16.78 kg / 37 lbs (with TLR sealant, no tubes)
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
