The Top Fuel 9.9 XX1 AXS pulls out all the stops.
The Top Fuel 9.9 XX1 AXS pulls out all the stops.
Trek

Trek Top Fuel 9.9 XX1 AXS Mountain Bike in Pennyflake

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

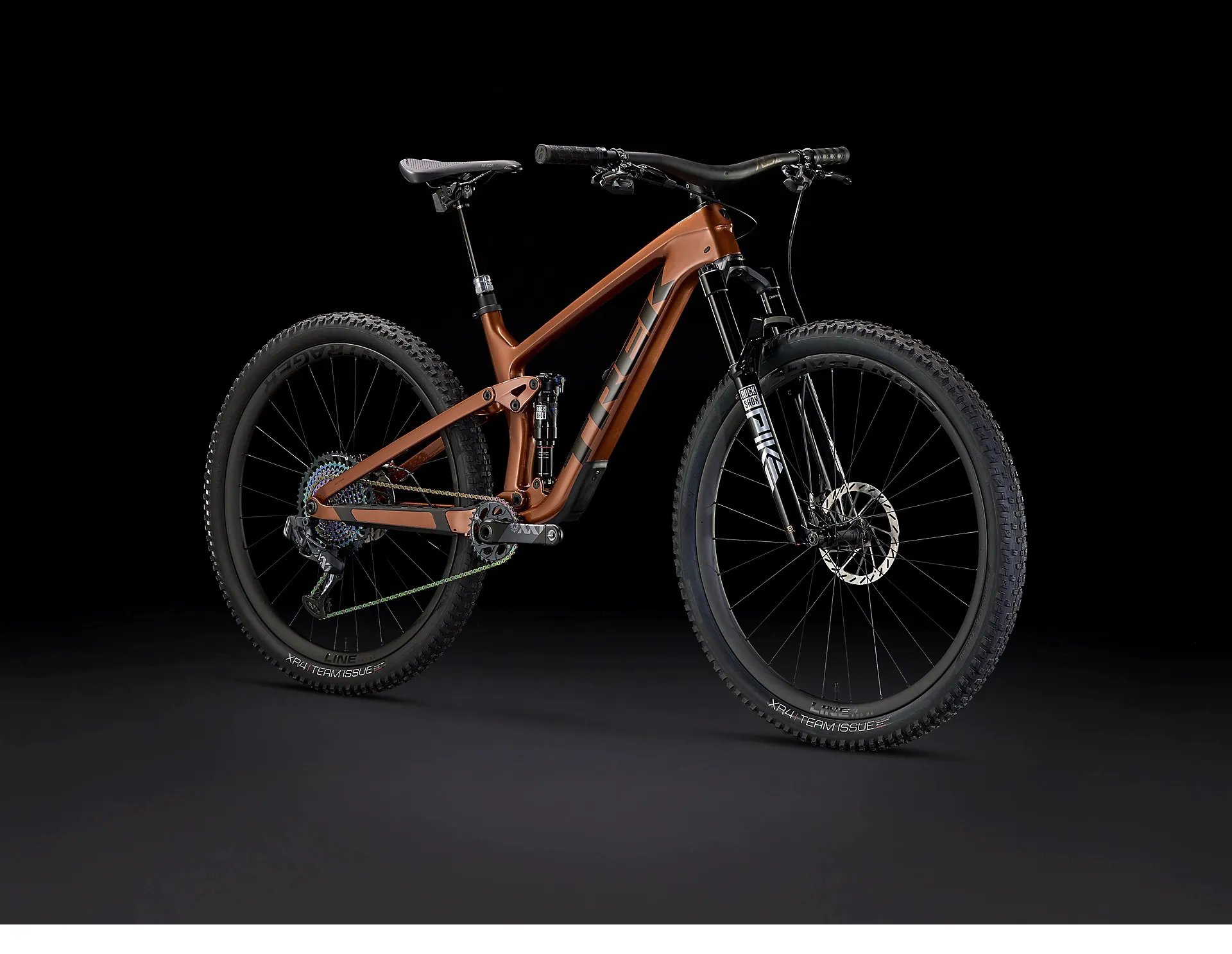

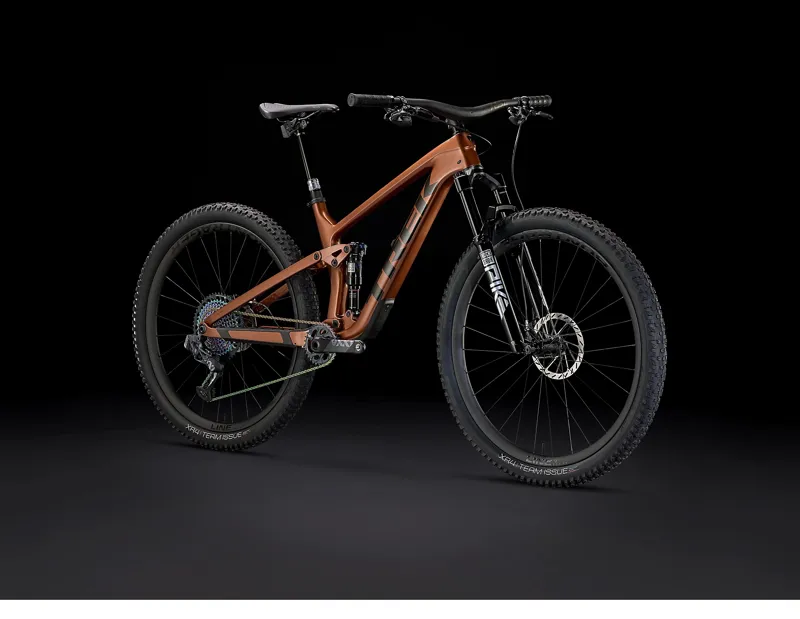

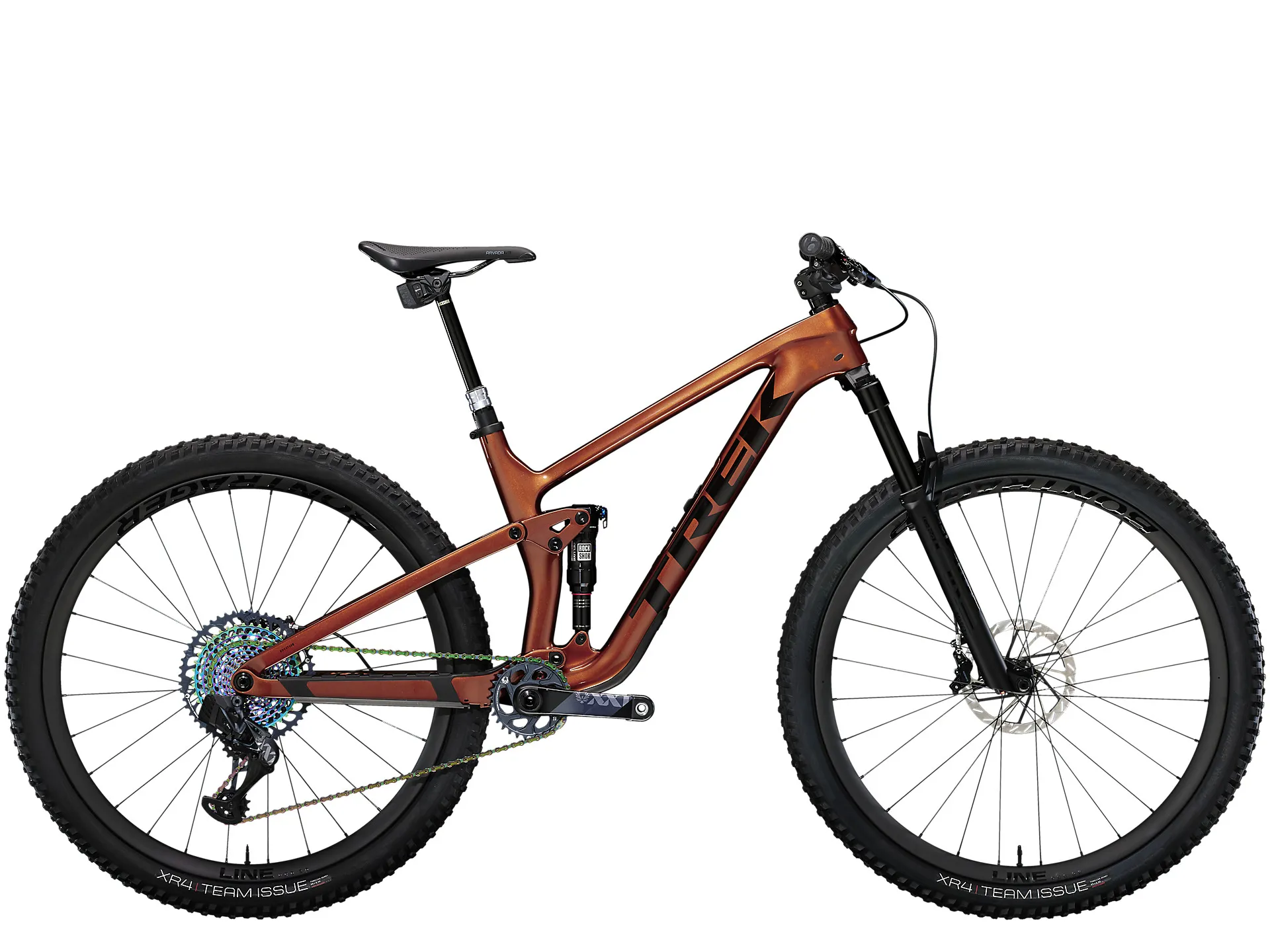

Trek Top Fuel 9.9 XX1 AXS Mountain Bike in Pennyflake

Season:2023

Brand:Trek

Code:37070Pennyflake

The Top Fuel 9.9 XX1 AXS pulls out all the stops.

This full-suspension carbon mountain bike is built with the latest in fully wireless components like a SRAM XX1 Eagle AXS drive train and RockShox Reverb AXS dropper. It's also spec'd with high-end RockShox suspension and lots of carbon – including the wheels, bars, shifters and brake levers.
Technical Information
  • Frame

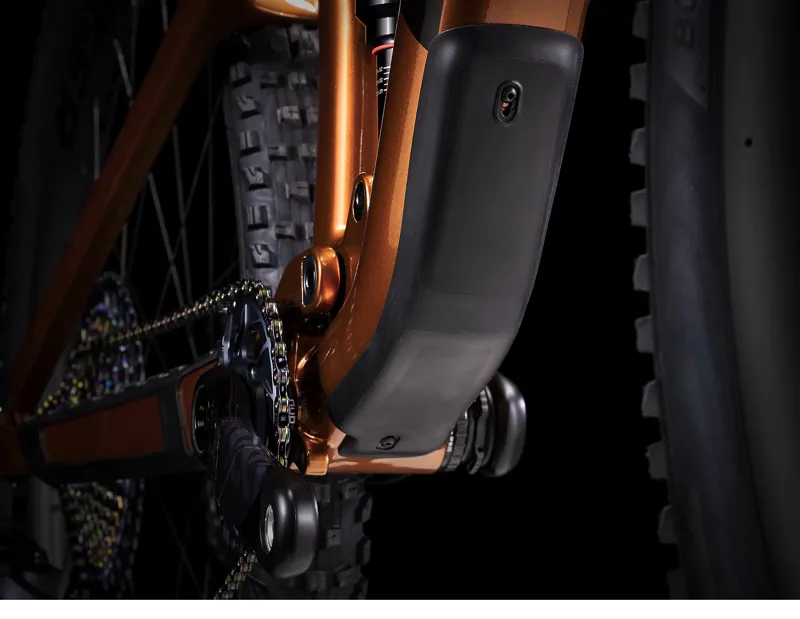

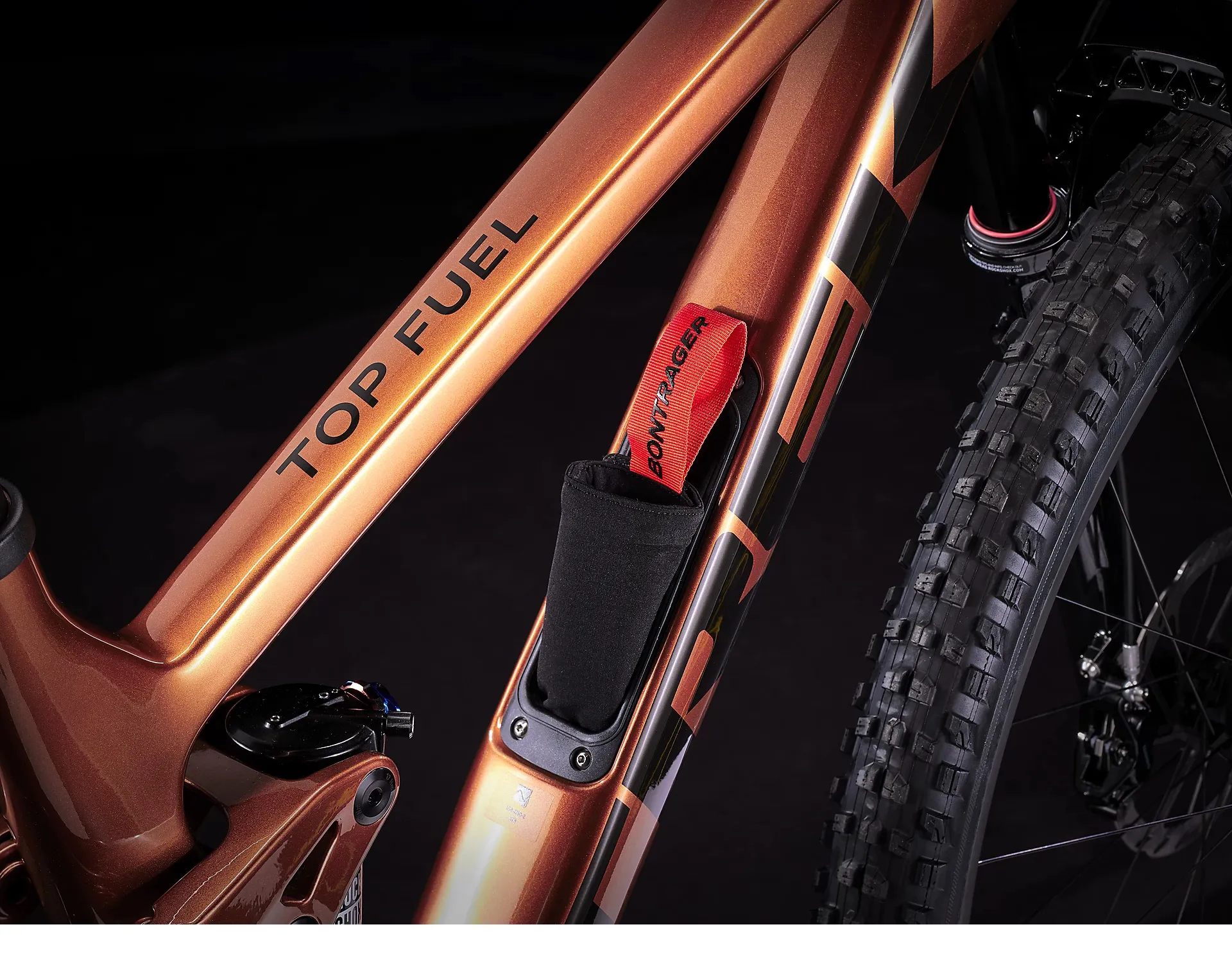

    OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Fork
    RockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 130 mm travel

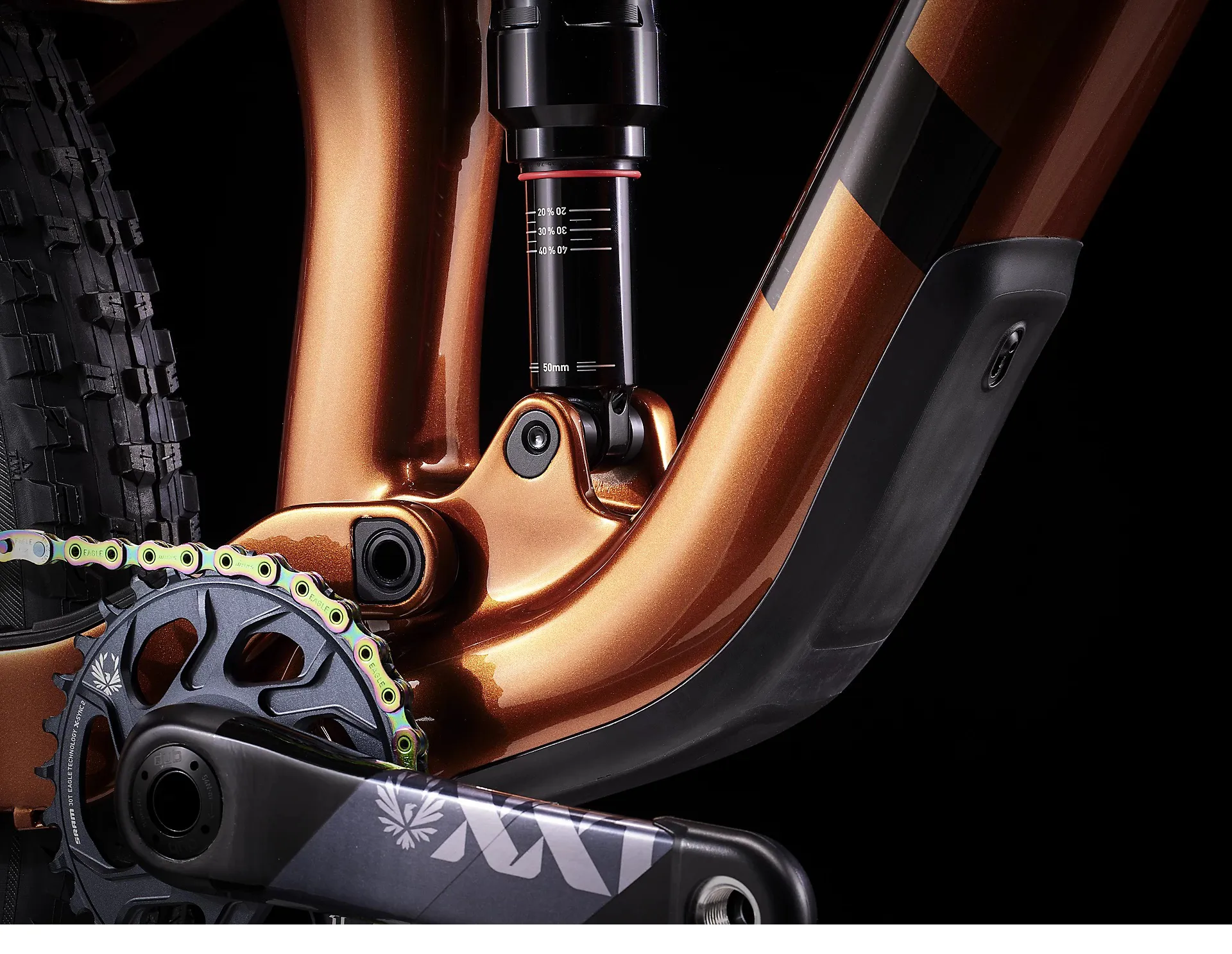

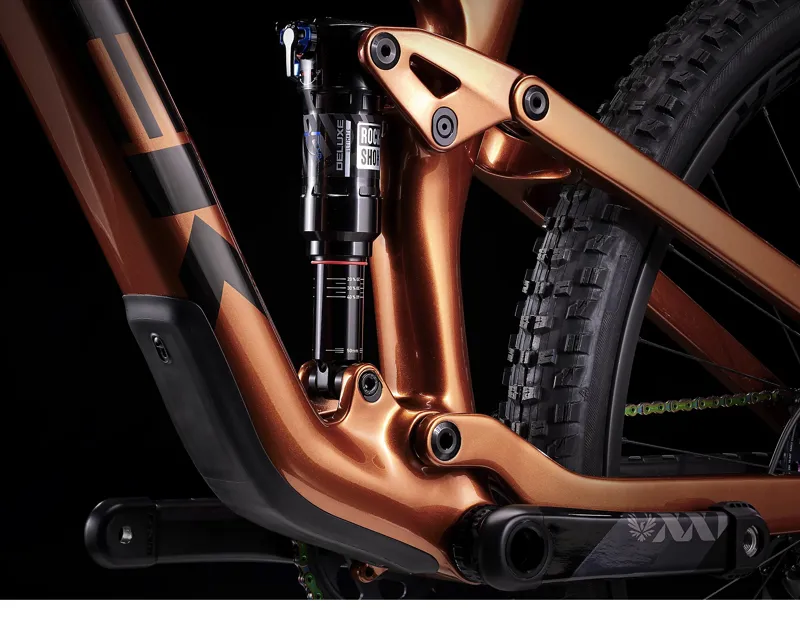

  • Shock
    RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
  • Max compatible fork travel
    130 mm (541 mm axle-to-crown)
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
  • Rim
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready

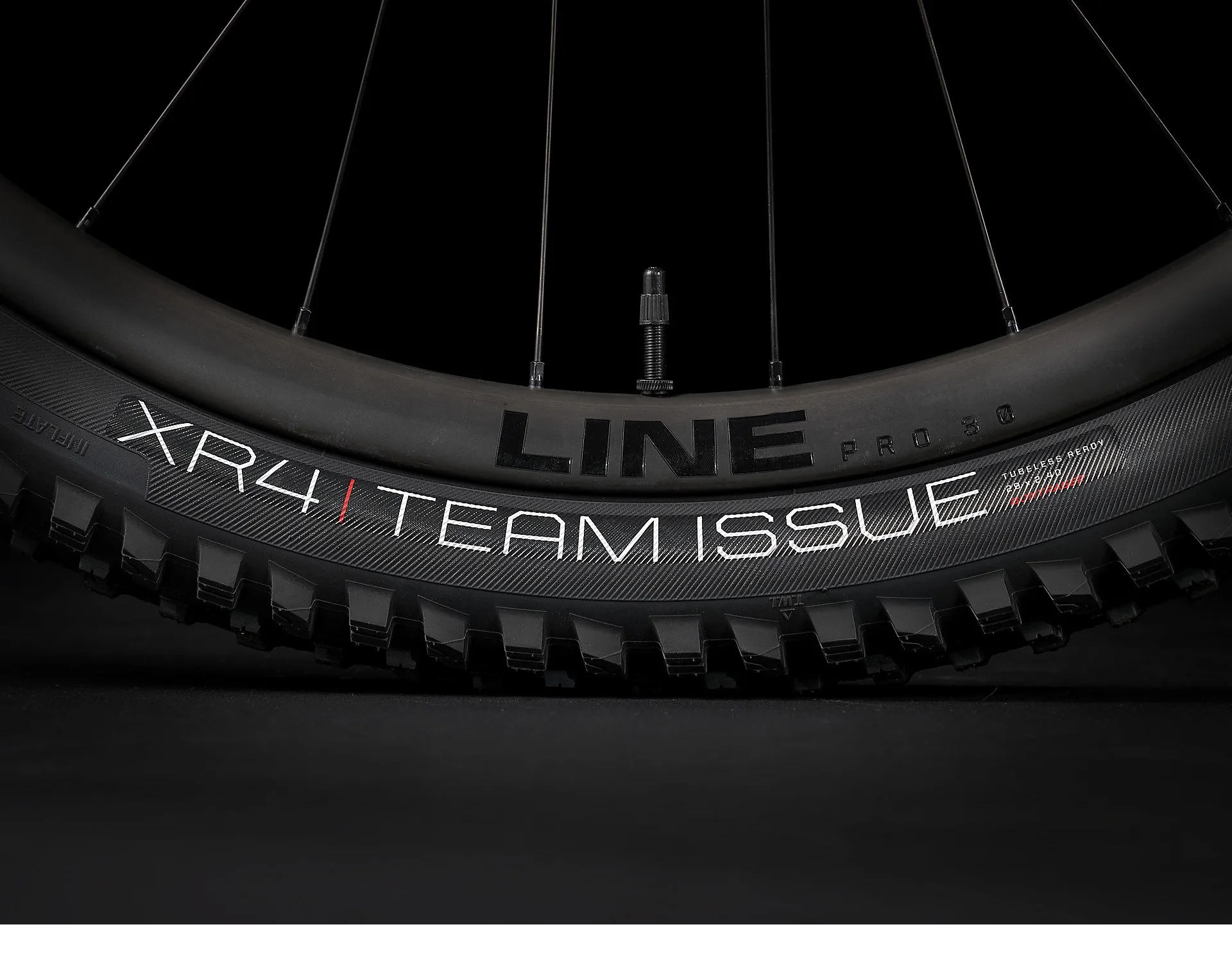

  • Tyre
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.5" Fork: see manufacturer
  • Shifter
    SRAM Eagle AXS, wireless, 12 speed

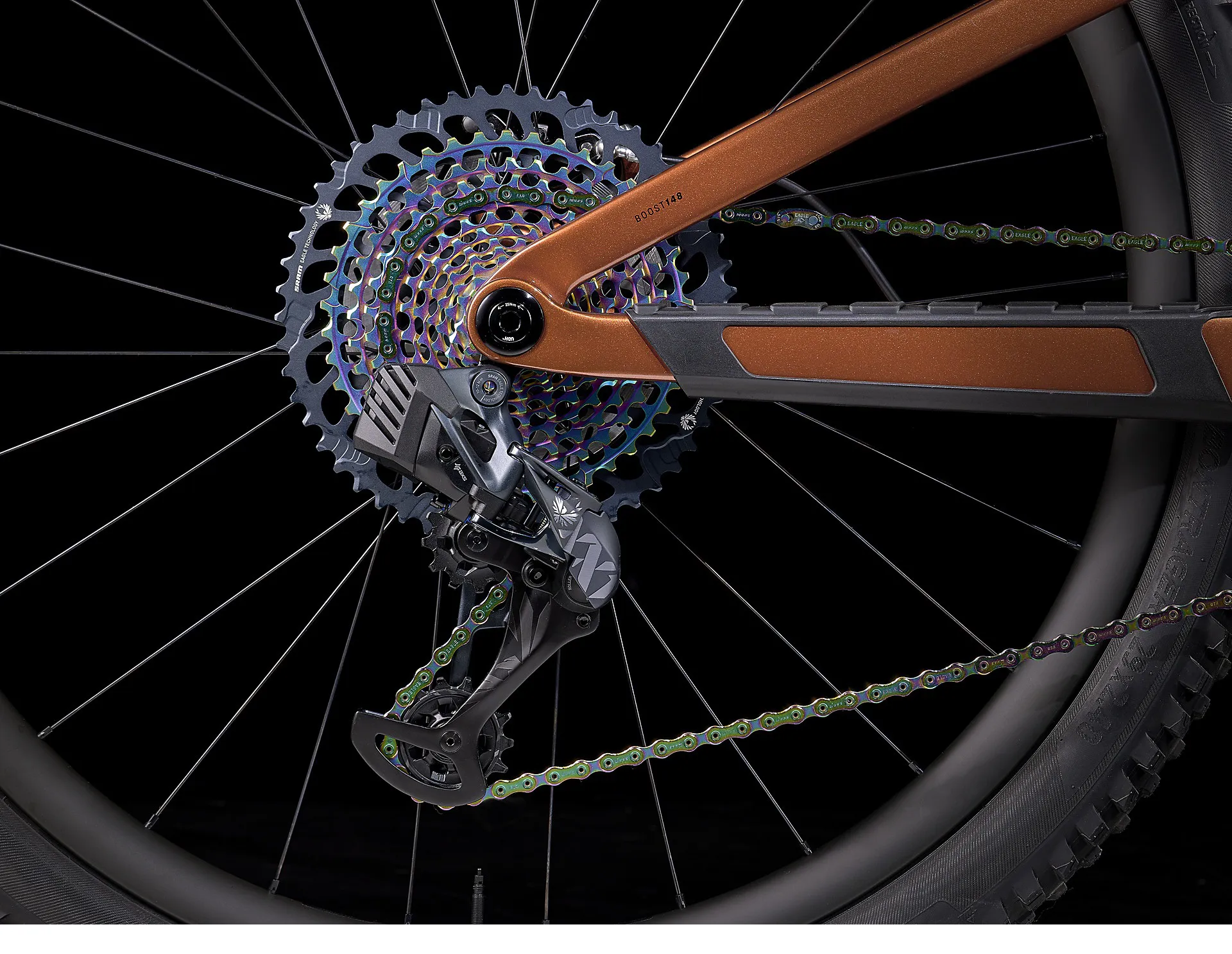

  • Rear derailleur
    SRAM XX1 Eagle AXS
  • Crank
  • Size: S, M, M/L, L
    SRAM XX1 Eagle, DUB, 30T alloy ring, 55 mm chainline, 170 mm length
  • Size: XL
    SRAM XX1 Eagle, DUB, 30T alloy ring, 55 mm chainline, 175 mm length
  • Bottom bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XG-1299, 10-52, 12-speed
  • Chain
    SRAM XX1 Eagle, 12-speed
  • Max. chainring size
    Max: 36T (oval – 34T) Min: 28T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
  • Size: S
    RockShox Reverb AXS, 100 mm travel, wireless, 34.9mm, 340 mm length
  • Size: M, M/L
    RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
  • Size: L, XL
    RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

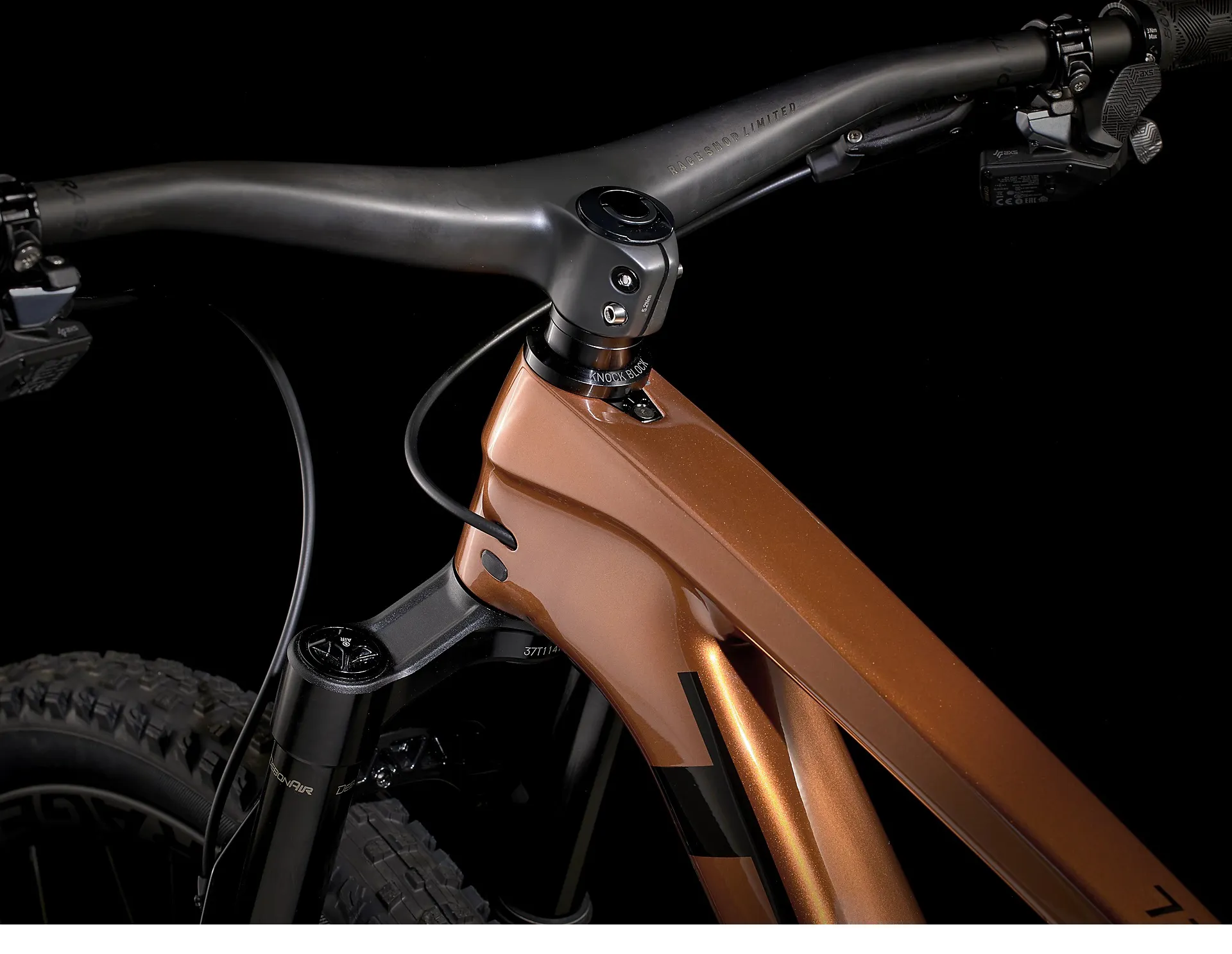

  • Integrated Bar Stem
  • Size: S
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Size: M, M/L, L, XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Head set
    Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    SRAM G2 Ultimate hydraulic disc, carbon levers

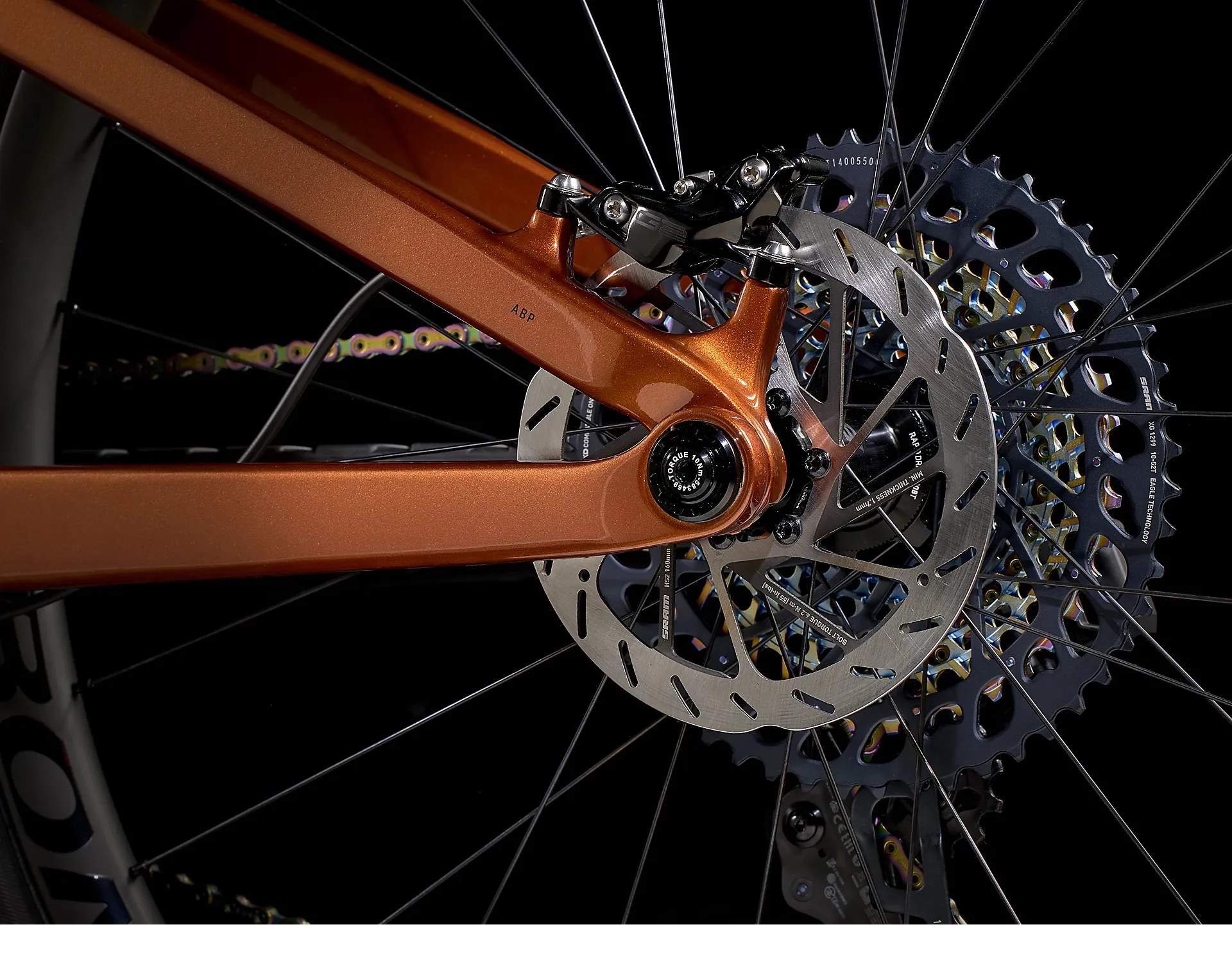

  • Brake rotor
  • Size: S, M, M/L, L, XL
    SRAM HS2, 6-bolt, 160 mm
  • Size: S, M, M/L, L, XL
    SRAM HS2, 6-bolt, 180 mm
  • Rotor size
    Max brake rotor sizes: Front see fork manufacturer, rear 180 mm
  • Battery
    SRAM eTap battery pack (with charger)
