Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail
Trek

Trek Marlin 5 Hardtail Mountain Bike in Azure Blue

£464.95 £550.00 15% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

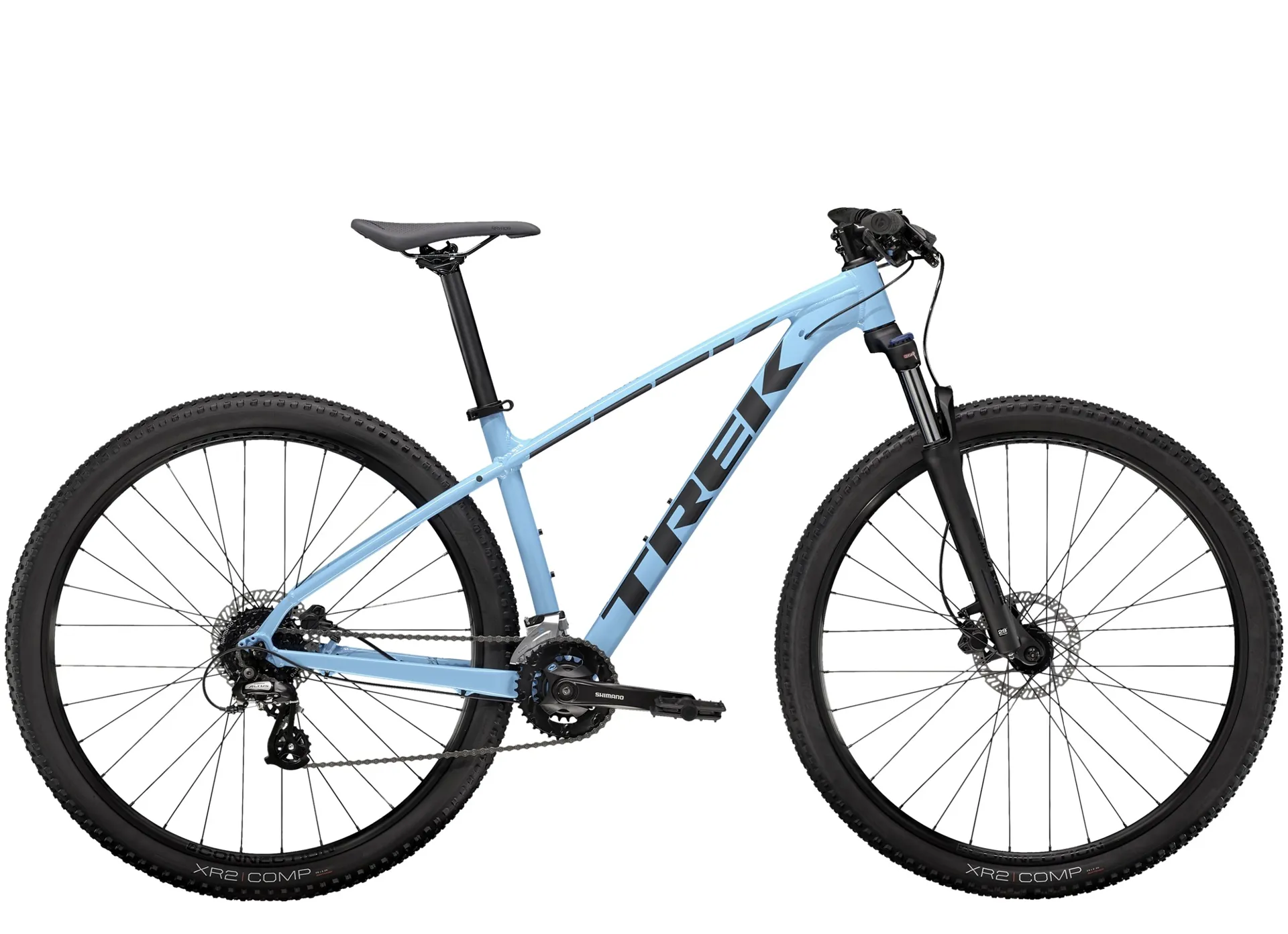

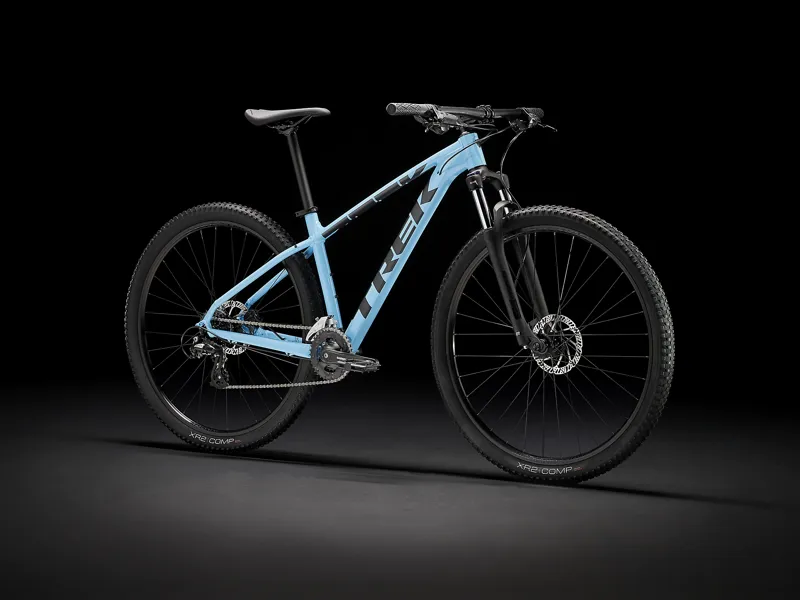

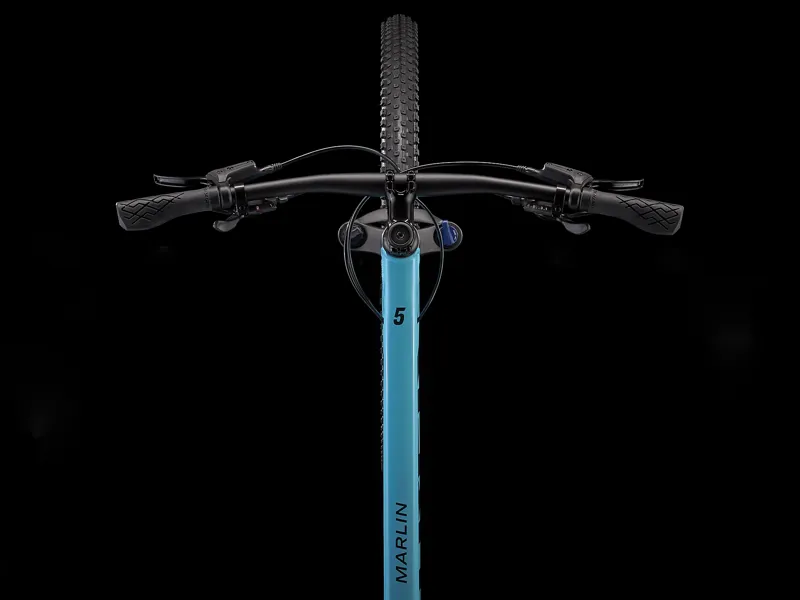

Trek Marlin 5 Hardtail Mountain Bike in Azure Blue

Season:2023

Brand:Trek

Code:34587Azure

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail

A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Features:

  • It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface
  • Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
  • Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

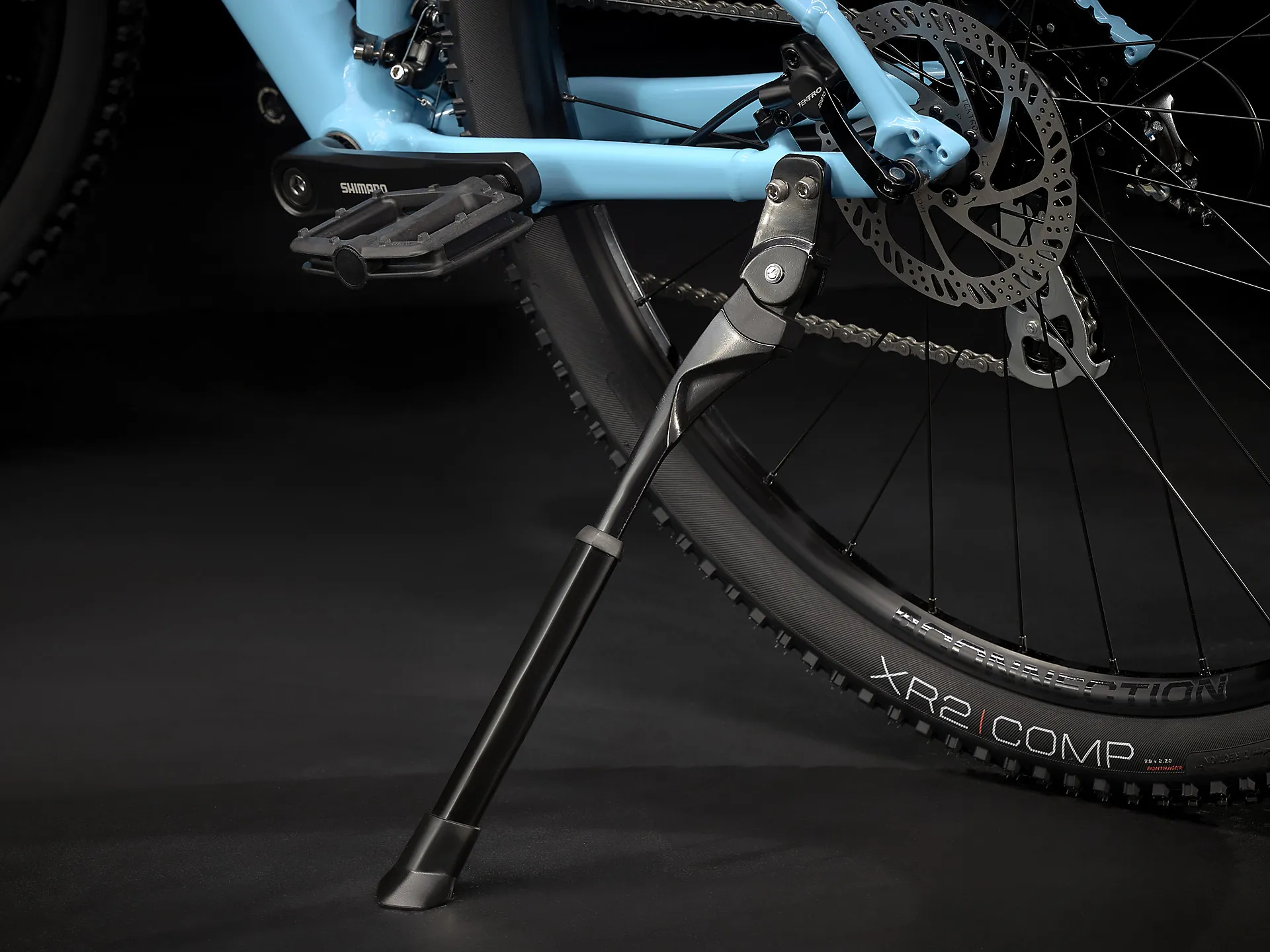

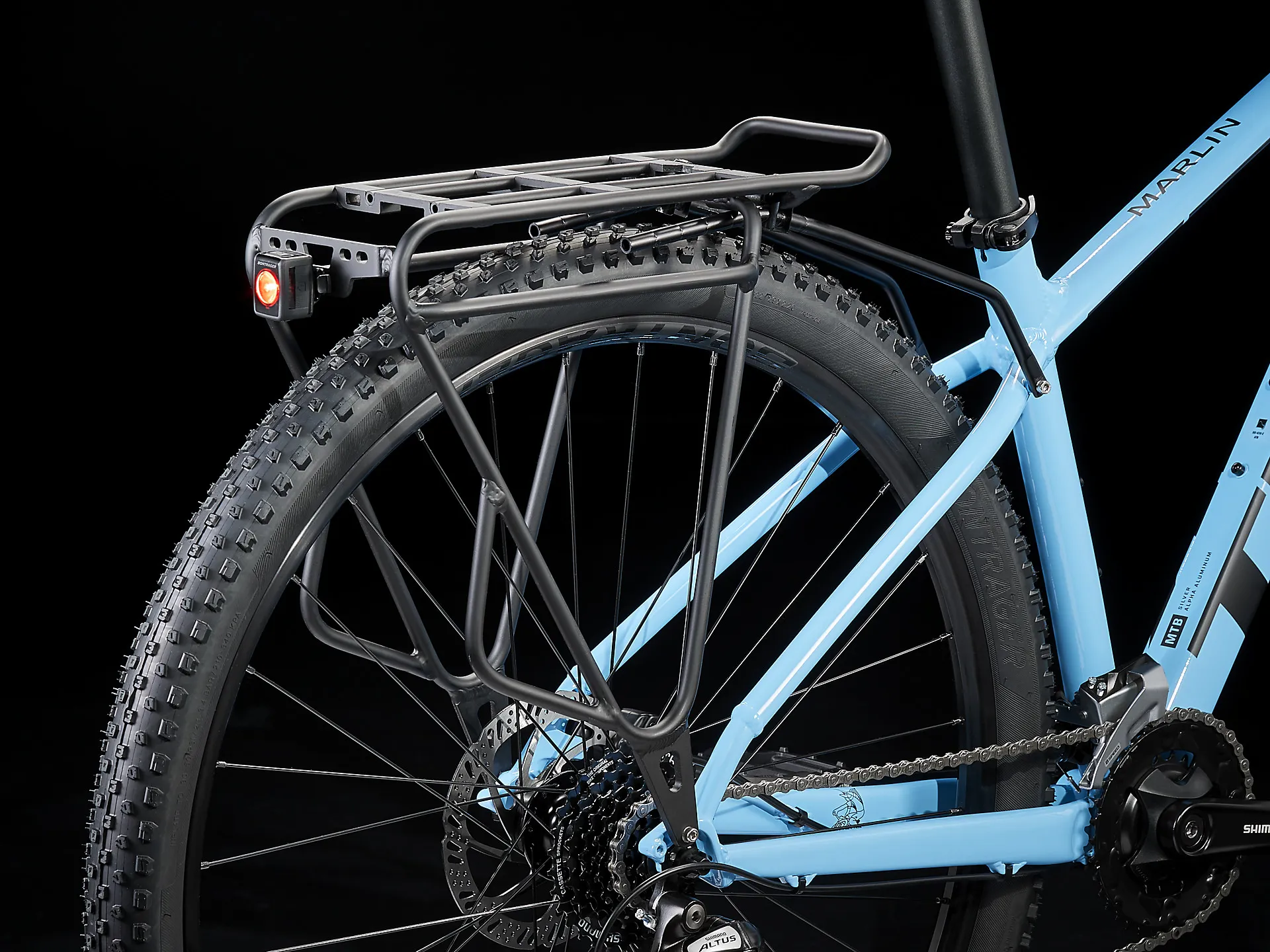

  • Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
  • Like every model in the Marlin family, it's backed by Trek's lifetime warranty
Technical Information
  • Frame
    Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

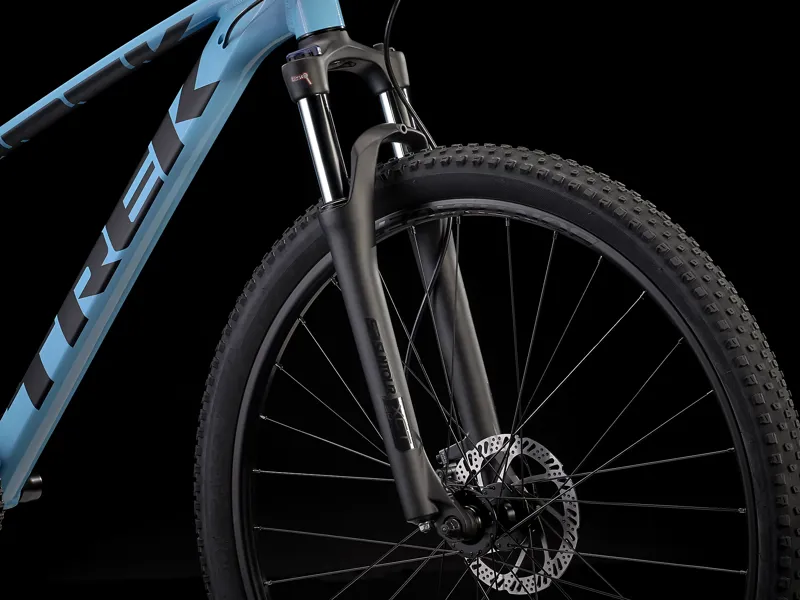

  • Fork
    Size: XXS, SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
    Size: XS, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
    Size: XS, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 80mm travel
    Size: S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
    Size: S/M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 100mm travel
    Size: M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
  • Hub front
    Formula DC-20, alloy, 6-bolt, 5x100mm QR
  • Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Rim
    Size: XXS, Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve
    Size: XS/S/M/ML/L/XL/XXL, Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
  • Spokes
    14g stainless steel

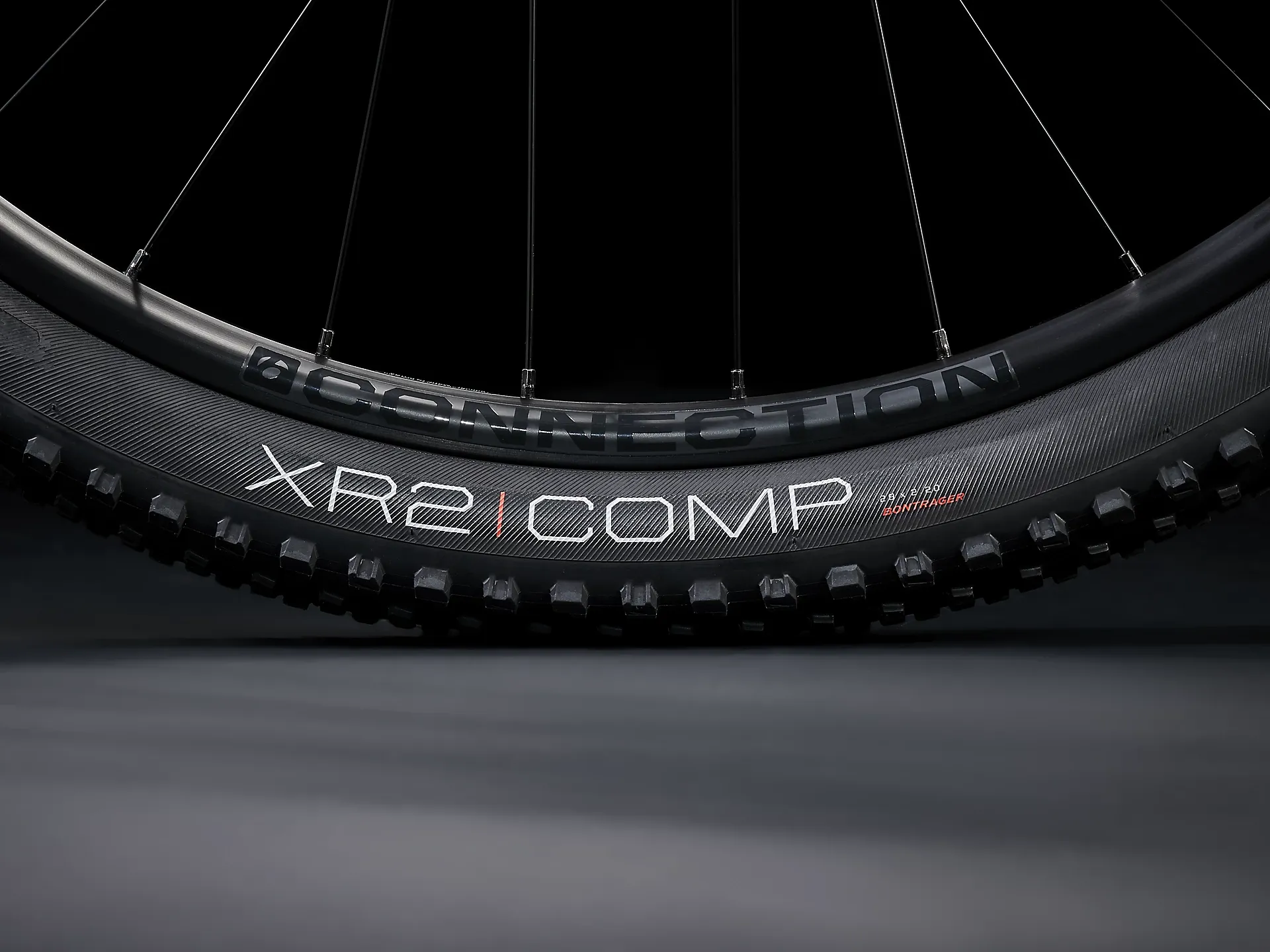

  • Tire
    Size: XXS, Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
    Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
    Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
  • Shifter
    Shimano Altus M315, 8 speed
  • Front derailleur
    Shimano Altus M315, 34.9mm clamp, top swing, dual pull

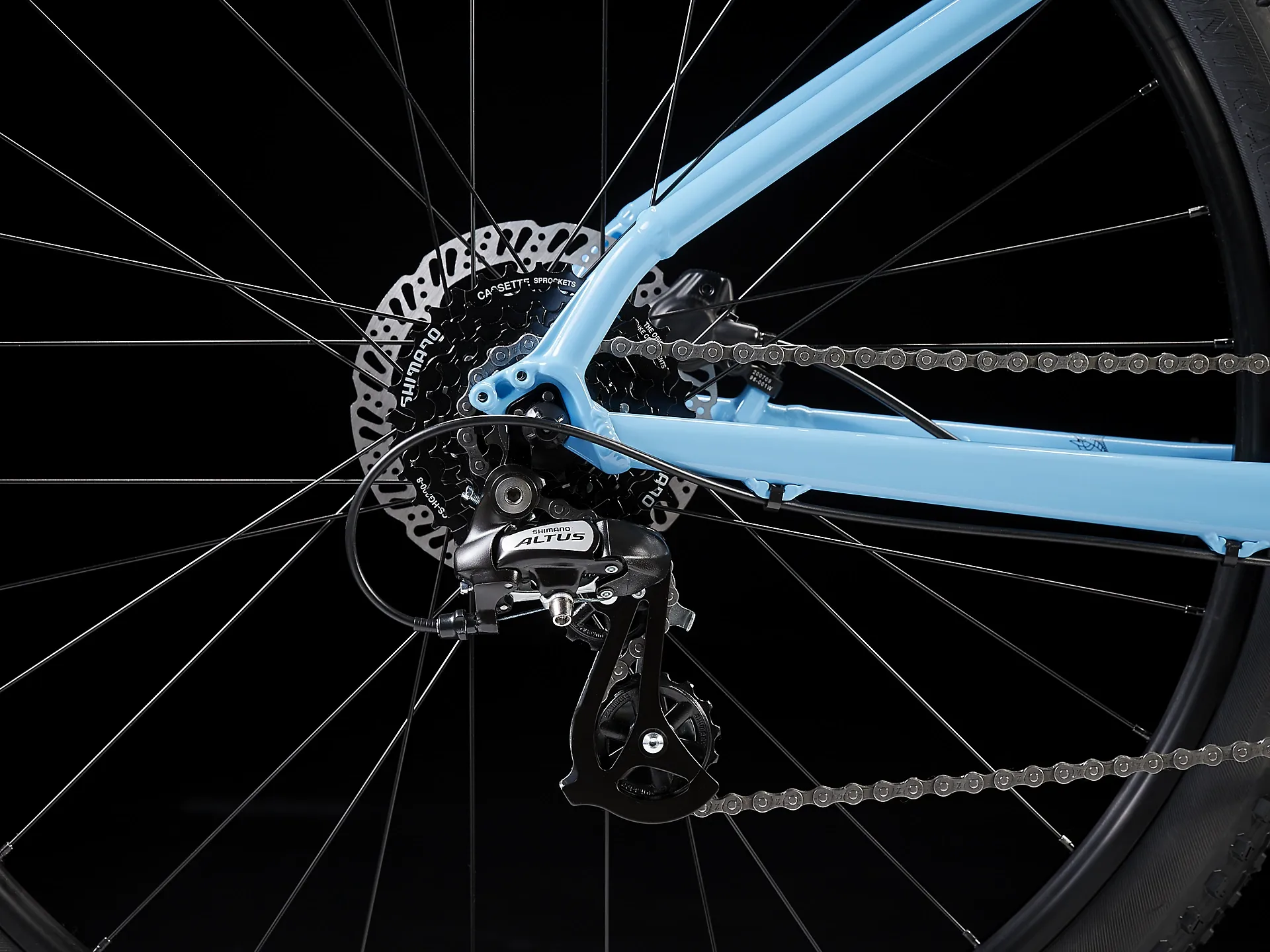

  • Rear derailleur
    Shimano Altus M310
  • Crank
    Size: XXS, Prowheel TM-CY10, 36/22, 160mm length
    Size: XS/S/M, Shimano M315, 36/22, 170mm length
    Size: ML/L/XL/XXL, Shimano M315, 36/22, 175mm length
  • Bottom bracket
    VP BC73, 73mm, threaded cartridge
  • Cassette
    Shimano HG200, 12-32, 8 speed
  • Chain
    KMC Z8.3, 8 speed
  • Pedal
    VP-536 nylon platform

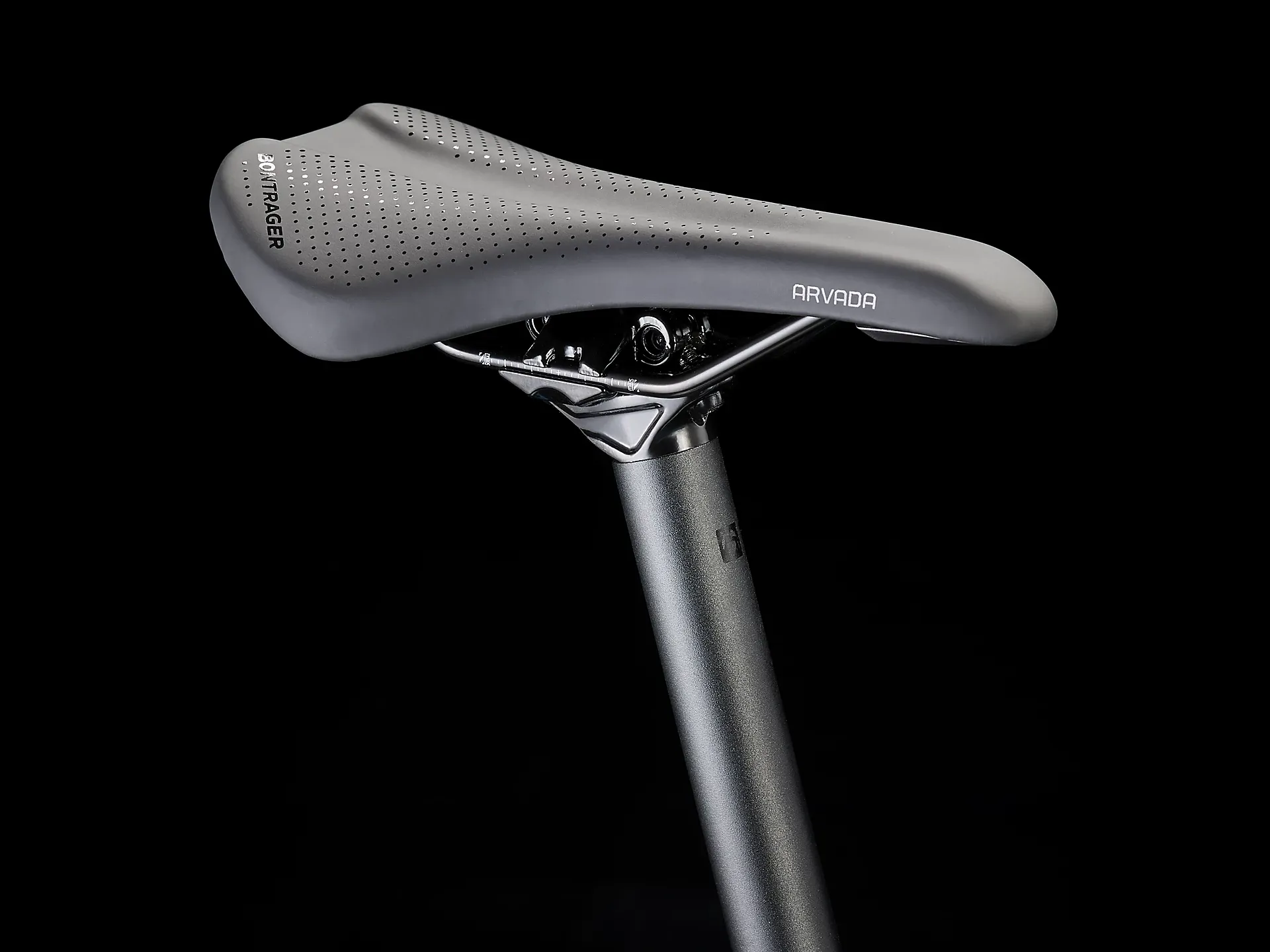

  • Saddle
    Bontrager Arvada, steel rails, 138mm width
  • Seatpost
    Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length
    Size: XS/S/M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length
    Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length

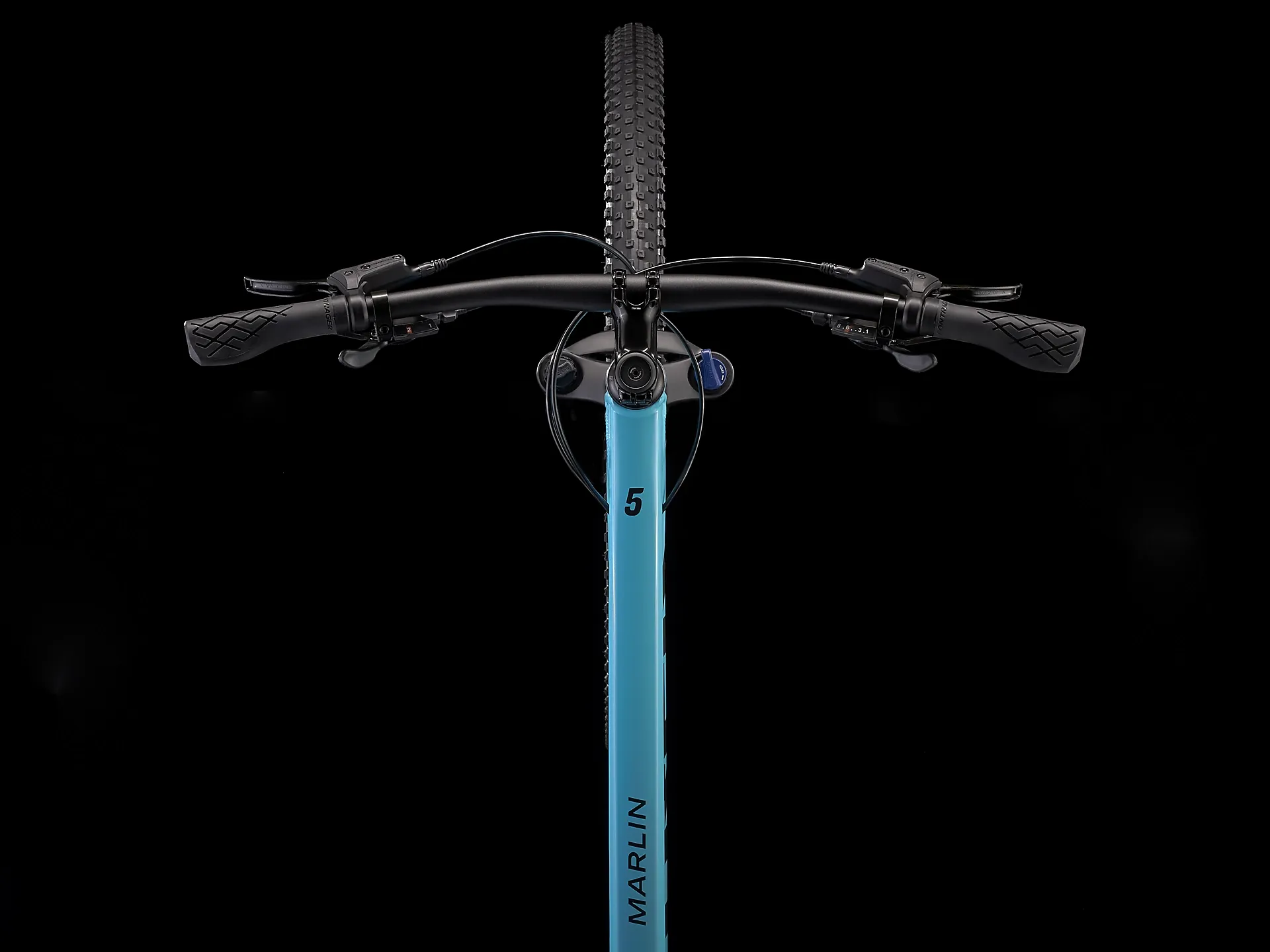

  • Handlebar
    Size: XXS/XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    Size: S/M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
  • Grips
    Bontrager XR Endurance Comp, lock-on
  • Stem
    Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
    Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
    Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
    Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
    Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
  • Headset
    Semi-integrated, 1-1/8''
  • Brake
    Size: XXS/XS/S, Tektro HD-M276 hydraulic disc, short reach lever
    Size: M/ML/L/XL/XXL, Tektro HD-M275 hydraulic disc
  • Weight
    M - 30.80 lbs / 13.9725 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
