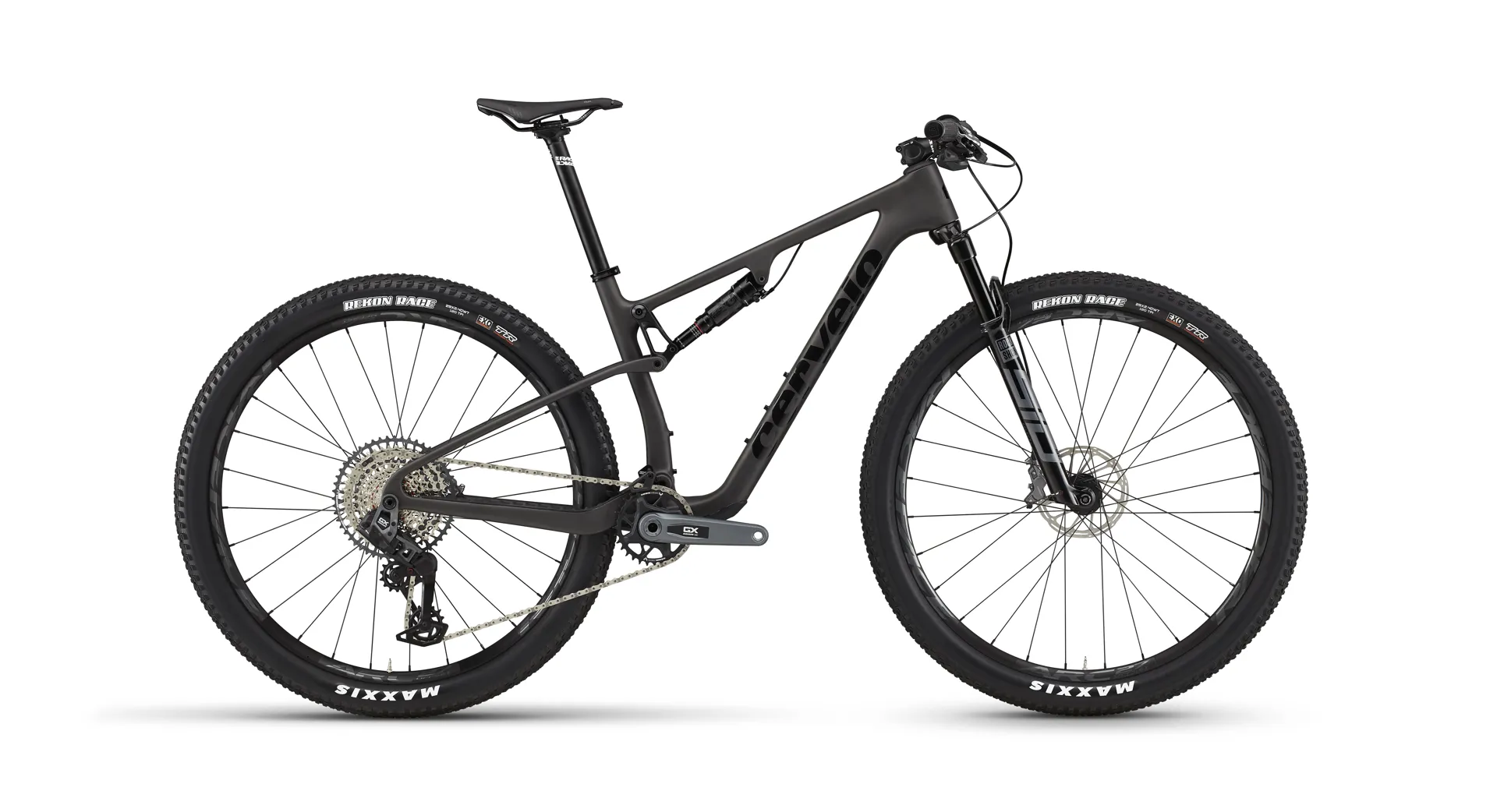

Progressive but racy, ZFS-5 was built for today’s evolving XCO courses—it has to pedal well and handle quickly, but also take on the chunks, jumps, and drops littering the circuit. ZFS-5’s 67.8-degree head tube angle delivers the precision required for elbow-to-elbow hole shot sprints, and the confidence to let off the brakes when the track gets rough. And in 120mm-outfitting, the 66.6-degree head angle will give you the extra confidence to push harder, and ride faster, even when the trail gets a bit...hellish.
FORK - Rockshox SID SL Select+, DebonAir spring, 3 position remote Charger Race Day damper, tapered steerer, 15x110mm, Maxle Stealth, 44mm offset, 100mm
SHOCK - Rockshox SIDLuxe Select+, RL 3 position remote damper, 190 x 40mm
HEADSET - FSA IS2 1-1/2 x 1-1/2
THRU AXLES - Cervelo Thru-axle, 12x148
WHEELS - Rear: Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 12x148mm, XD freehub, 28H, 6 bolt, tubeless compatible Front: Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 15x110mm, 24H, 6 bolt, tubeless compatible
TIRES - Maxxis Rekon Race, EXO 120TPI, 29x2.4
CRANKSET - SRAM GX Eagle, 32T, Boost 148 DUB
BOTTOM BRACKET - SRAM DUB, BSA 73mm
CHAIN - SRAM GX, 12 speed
REAR DERAILLEUR - SRAM GX Eagle AXS, 12 speed
CASSETTE - SRAM GX Eagle, 10-52, 12 speed
SHIFTERS - SRAM GX AXS Rocker
HANDLEBAR - Race Face Turbine Alloy, 35mm clamp, 760mm width, 10mm rise
STEM - Race Face Aeffect Alloy, 35mm clamp, 6 degree
BRAKE CALIPERS - SRAM Level Bronze 4 Piston
BRAKE LEVERS - SRAM Level Bronze Stealth 4 Piston
SADDLE - Prologo Dimension NDR T4.0
SEATPOST - Race Face Ride XC Alloy 30.9
BRAKE ROTOR - SRAM Centerline 6-Bolt
