The Rail 9.9 CXR is a race-ready long-travel e-bike that's ready to accelerate to the full right off the the starting line.
The Rail 9.9 CXR is a race-ready long-travel e-bike that's ready to accelerate to the full right off the the starting line.
Trek

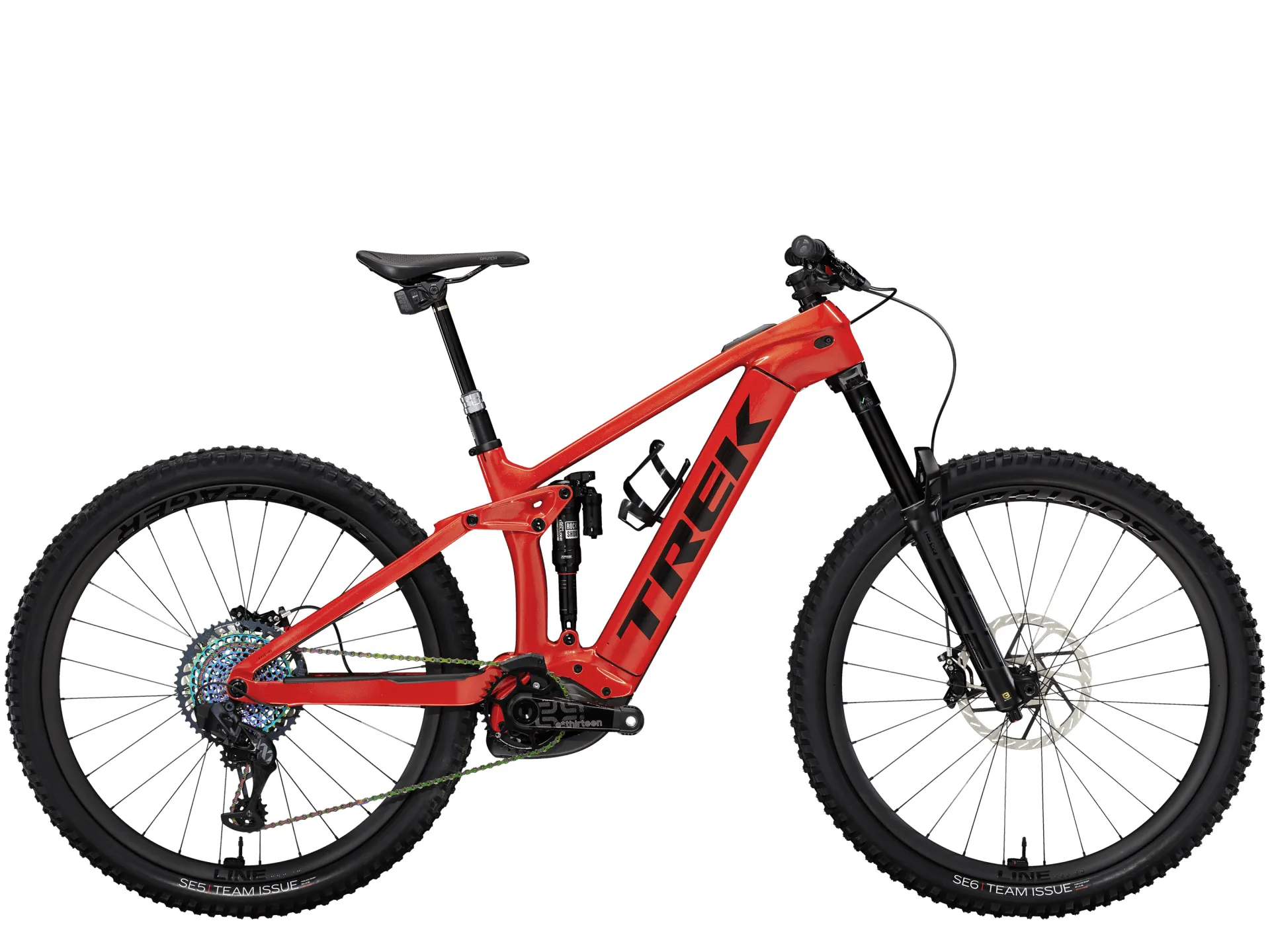

Trek Rail 9.9 CXR Electric Mountain Bike in Lava Red

£12,950.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Rail 9.9 CXR Electric Mountain Bike in Lava Red

Season:2024

Brand:Trek

Code:41853RED

The Rail 9.9 CXR is a race-ready long-travel e-bike that's ready to accelerate to the full right off the the starting line.

It features our best carbon frame, smooth RockShox suspension and top-tier Shimano XTR drivetrain. But the real show stealer on this powerhouse is the limited-edition Bosch Performance Line CXR motor that accelerates faster and offers sustained power for ripping through rock gardens without pedalling.

It's equipped with an extra-long range battery and smart system, plus the new Mini Remote and System Controller display that sits flush with the top tube and pairs with the eBike Flow app to give you activity tracking, navigation and Bluetooth connectivity.
Technical Information
  • Frame
    OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
  • Fork
    RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8" oversized tapered steerer, eMTB optimised crown, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock
    RockShox Super Deluxe Thru Shaft, AirWiz, 230 mm x 57.5 mm
  • Max compatible fork travel
    170 mm (580 mm axle-to-crown)
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
  • Size:S, M, L, XL
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Size:S, M, L, XL
    Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
  • Size:S, M, L, XL
    Bontrager TLR sealant, 180 ml/6 oz
  • Size:S, M, L, XL
    Quarq TyreWiz tyre pressure monitors
  • Max tyre size
    Frame: 29x2.60", Fork: See manufacturer
  • Shifter
    Shimano XTR M9100, 12-speed
  • Rear derailleur
    Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Crank
    E*thirteen E*spec Race carbon, 165 mm length
  • Chainring
    E*thirteen E*spec, 34T alloy, 55 mm chainline
  • Cassette
    Shimano XTR M9101, 10-51, 12-speed
  • Chain
    Shimano Dura-Ace/XTR M9100, 12-speed
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x: 34T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
  • Size:S
    Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
  • Size:M
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size:L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9mm, 485 mm length
  • Size:XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9mm, 550 mm length
  • Handlebar
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
  • Brake
    Shimano XTR M9120 4-piston hydraulic disc
  • Brake rotor
    Shimano RT86, 6-bolt, 203 mm
  • Rotor size
    Max brake rotor sizes: Front see fork manufacturer, rear 200 mm
  • Battery
  • Size:S
    Bosch PowerTube 625Wh, smart system
  • Size:M, L, XL
    Bosch PowerTube 750Wh, smart system
  • Charger
    Bosch standard 4A, 230V, smart system
  • Controller
  • Size:S, M, L, XL
    Bosch System Controller BRC3100, smart system
  • Size:S, M, L, XL
    Bosch Mini Remote BRC3300, smart system, 22.2 mm
  • Motor
    Bosch Performance Line CX Race Edition, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
