The Fuel+ LX 9.8 XT Di2 is a hard-hitting electric mountain bike featuring an OCLV Carbon frame, TQ HPR60 motor, and Fox Factory suspension.
The Fuel+ LX 9.8 XT Di2 is a hard-hitting electric mountain bike featuring an OCLV Carbon frame, TQ HPR60 motor, and Fox Factory suspension.
Trek

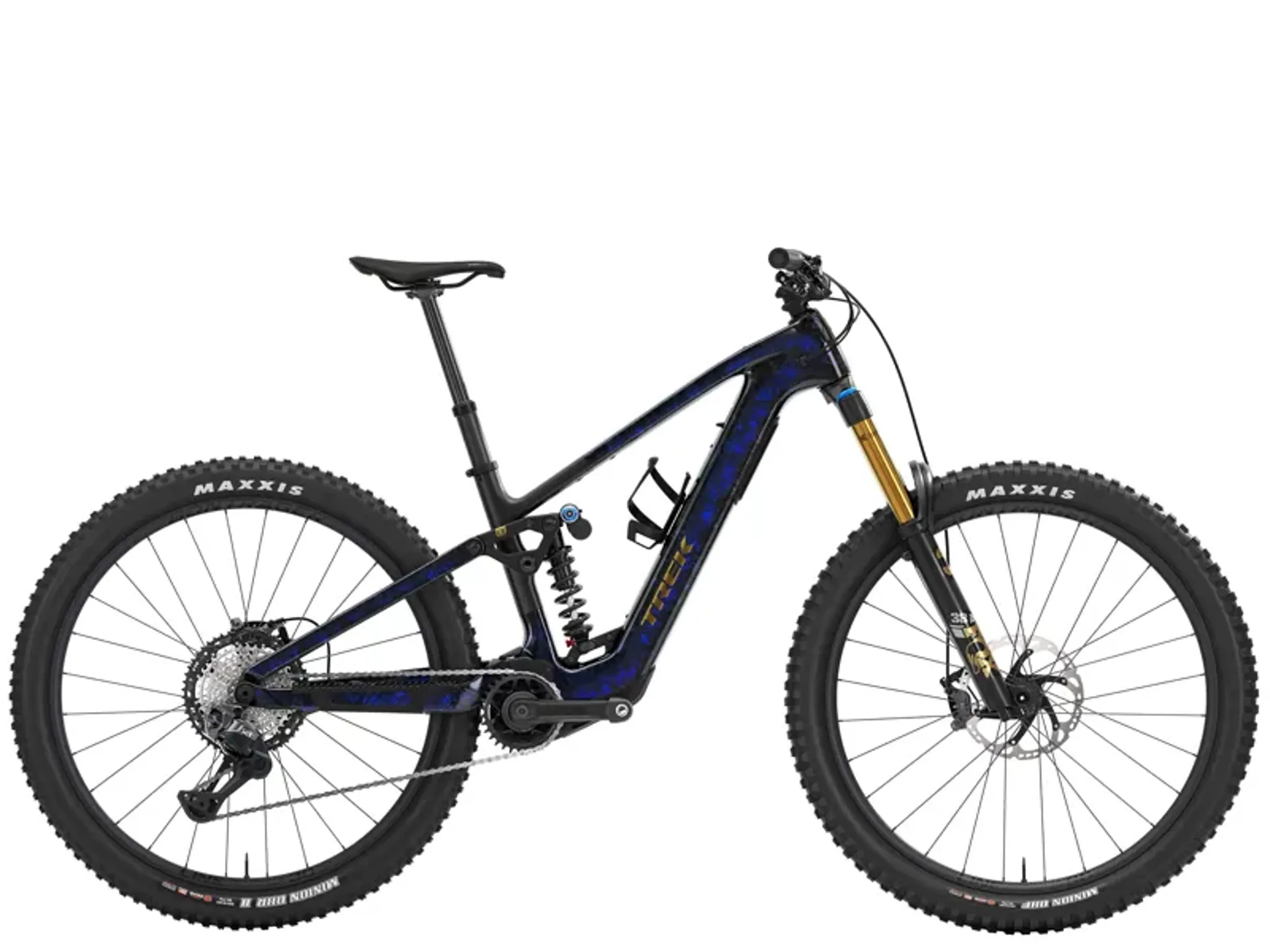

Trek Fuel+ LX 9.8 XT Di2 Gen 2 E-Mountain Bike in Gloss Navy Smoke/Matte Trek Black

£9,150.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Fuel+ LX 9.8 XT Di2 Gen 2 E-Mountain Bike in Gloss Navy Smoke/Matte Trek Black

Season:2026

Brand:Trek

Code:59257BLU

The Fuel+ LX 9.8 XT Di2 is a hard-hitting electric mountain bike designed for tackling endless laps.

Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160 mm rear, 170 mm front) keeps you feeling confident in the roughest terrain. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customisable shifting, and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.

The Fuel+ features a new frame that gives you loads of room for range extenders, long dropper posts, bigger shocks, and frame bags. The new HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580 Wh battery gives you more efficient power for your longest rides yet.

Features:

  • Adjustable leverage rate: Flip the chip in the lower shock mount for a more progressive leverage rate, offering more bottom-out resistance without giving up small-bump sensitivity.
  • Zero Stack Integrated Headset: With a ZS standard headset, you have loads of options for aftermarket upgrades, including angle adjust or anodised colours.
  • Active Braking Pivot: Allows engineers to tune how the suspension reacts to acceleration and braking forces independently, providing more confident control when you need it most.
Technical Information
  • Frame
    OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Fork
    Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel
  • Shock
    Fox DHX2, 205 mm x 65 mm
  • Suspension part
    Size: S - Fox steel coil spring, 250 lbs; Size: M - Fox steel coil spring, 350 lbs; Size: L - Fox steel coil spring, 400 lbs; Size: XL - Fox steel coil spring, 450 lbs; Size: XXL - Fox steel coil spring, 500 lbs
  • Wheel front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
  • Wheel rear
    Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 29"
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Tyre
    Size: S, M, L, XL, XXL - Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''; Size: S, M, L, XL, XXL - Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    Frame: 29x2.50", Fork: See manufacturer
  • Battery
    TQ 580Wh
  • Charger
    TQ 4A charger
  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • Shifter
    Shimano XT Di2 M8250, 12-speed
  • Rear derailleur
    Shimano XT Di2 M8260, 12-speed
  • Crank arm
    E*thirteen E*spec Plus, 160 mm length
  • Chainring
    E*Thirteen Helix Core Steel 32t steel, 55mm chainline
  • Cassette
    Shimano XT M8200, 10-51, 12-speed
  • Chain
    Shimano Ultegra/XT M8100
  • Max. chainring size
    1x: 34T, min 30T
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Size: S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length; Size: M - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length; Size: L, XL, XXL - Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
  • Handlebar
    Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
  • Grips
    Trek Line Elite, lock-on
  • Stem
    Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Brake
    Shimano XT M8220 4-piston hydraulic disc
  • Brake rotor
    Shimano RT86, 6-bolt, 203 mm
  • Rotor size
    Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
  • Weight
    M - 20.68 kg / 45.6 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
