The Domane+ ALR 5 is an aluminium electric road bike with a smooth, quiet, and natural-feeling boost. Its TQ HPR60 motor pairs with a SRAM Apex 12-speed drivetrain.
The Domane+ ALR 5 is an aluminium electric road bike with a smooth, quiet, and natural-feeling boost. Its TQ HPR60 motor pairs with a SRAM Apex 12-speed drivetrain.
Trek

Trek Domane+ ALR 5 E-Road eBike in Matte Dark Star

£4,000.00
Size Guide
Trek Domane+ ALR 5 E-Road eBike in Plasma Grey Pearl
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

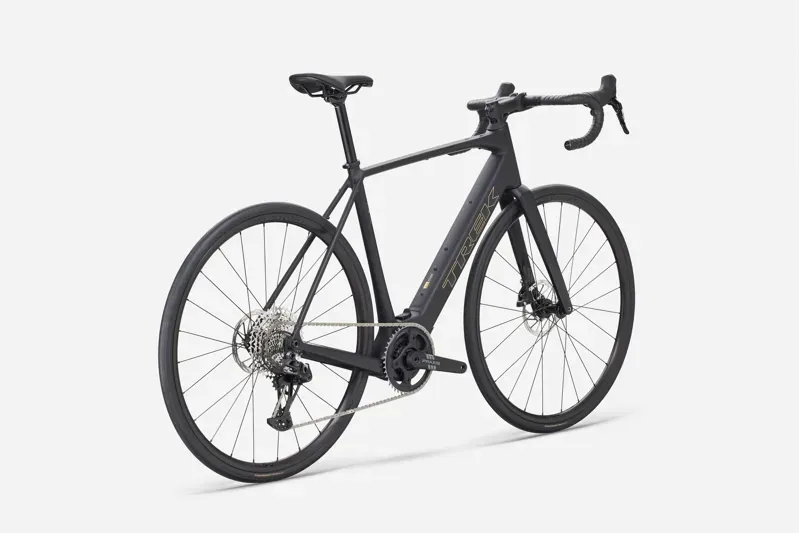

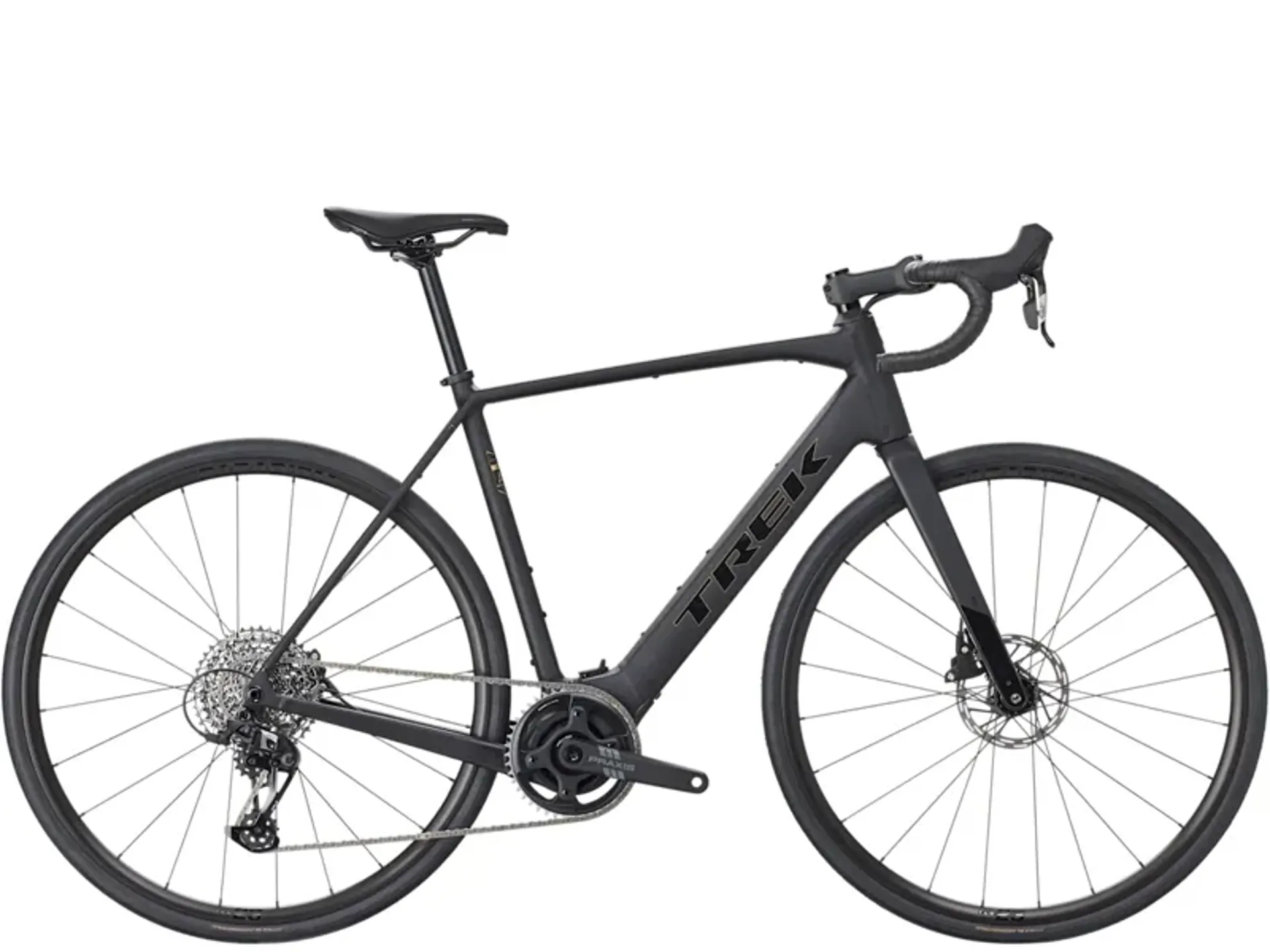

Trek Domane+ ALR 5 E-Road eBike in Matte Dark Star

Season:2026

Brand:Trek

Code:56167BLK

The Domane+ ALR 5 is an aluminium electric road bike offering a smooth, quiet, and natural-feeling boost for long rides and big climbs.

Its TQ HPR60 motor provides plenty of support and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts. The industry-leading TQ HPR60 motor is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 25 km/h (28 mph in the US) with three assist mode options.

The Domane+ features a stable Road Endurance geometry that is slightly more upright to keep you fast and comfortable on all-day adventures. Room for up to 40 mm tyres (as measured) lets you venture from tarmac to light gravel in comfort and confidence.

The Domane+ ALR features a durable and economical aluminium frame made with lower-emission aluminium. Starting in 2024, Trek began removing high-emission aluminium from manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike Trek makes, including this one, will have made the switch, driving a major drop in the brand's footprint.

The Trek Central app seamlessly connects to the Domane+ for real-time range calculations, activity tracking, and customised motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.

Features:

  • Explore further with an optional 160 Wh Range Extender that fits in your bottle cage and gives you an extended total range of around 193 km (120 miles) in Eco mode.
  • Mounts for a triangle bag, rack, mudguards, and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
Technical Information
  • Frame
    300 Series Alpha Aluminium, TQ drive system, hidden mudguard mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
  • Fork
    Domane+ carbon, tapered carbon steerer, mudguard mounts, flat mount disc, 12x100 mm thru axle
  • Weight
    ML - 14.39 kg / 31.73 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger
  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity

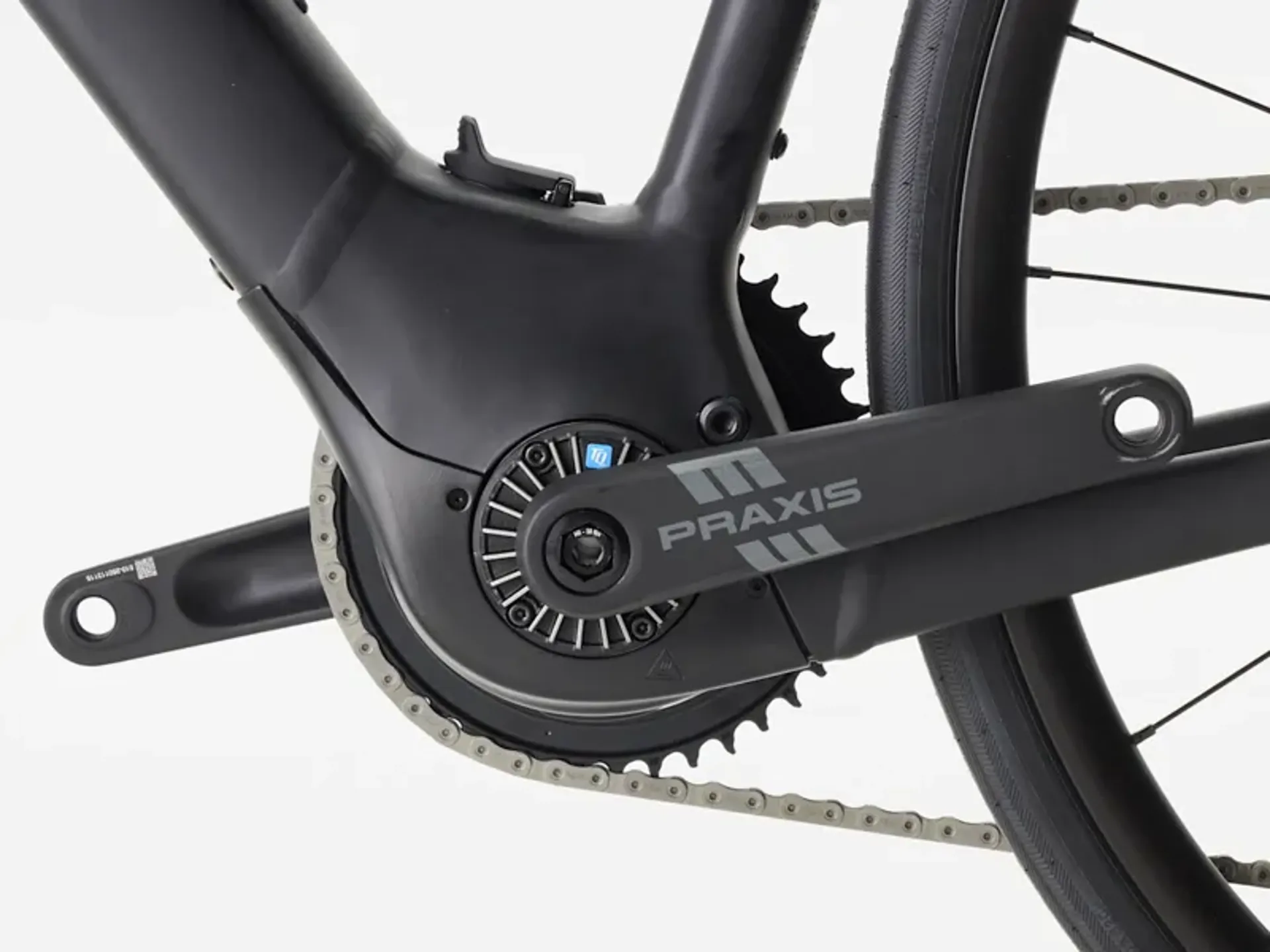

  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • Shifter
    SRAM Apex, 12-speed

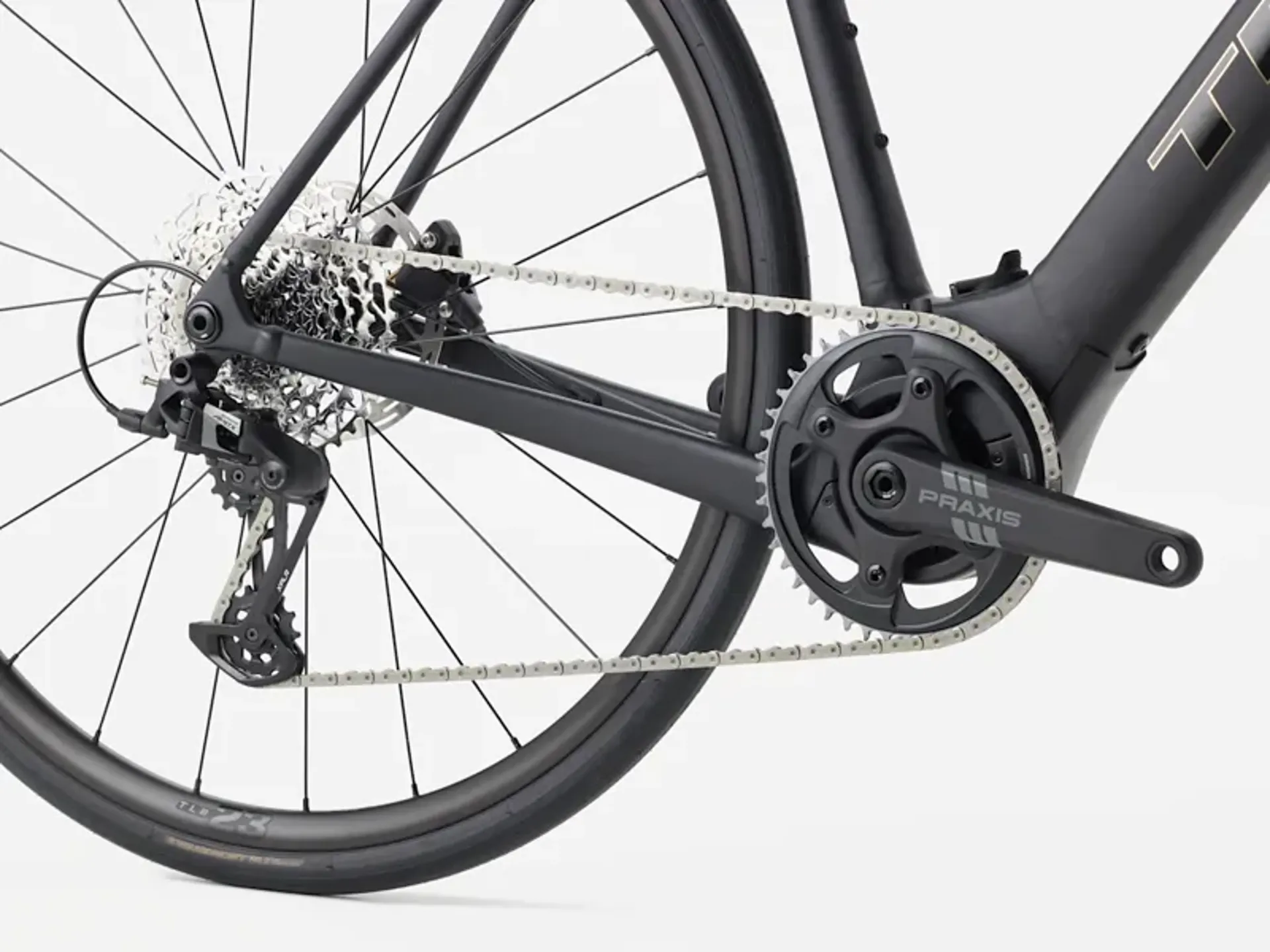

  • Rear derailleur
    SRAM Apex XPLR, 44T max cog
  • Crank
    Size: XS, S: Praxis Alloy, 165 mm length; Size: M, ML: Praxis Alloy, 170 mm length; Size: L, XL: Praxis Alloy, 172.5 mm length
  • Cassette
    SRAM XPLR PG-1231, 11-44, 12-speed
  • Chain
    SRAM Apex, 12-speed
  • Max. chainring size
    1x: 46T
  • Hub front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Rim
    Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
  • Spokes
    14 g stainless steel, black
  • Tyre
    Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32 mm
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    40 mm without mudguards, 35 mm with mudguards
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

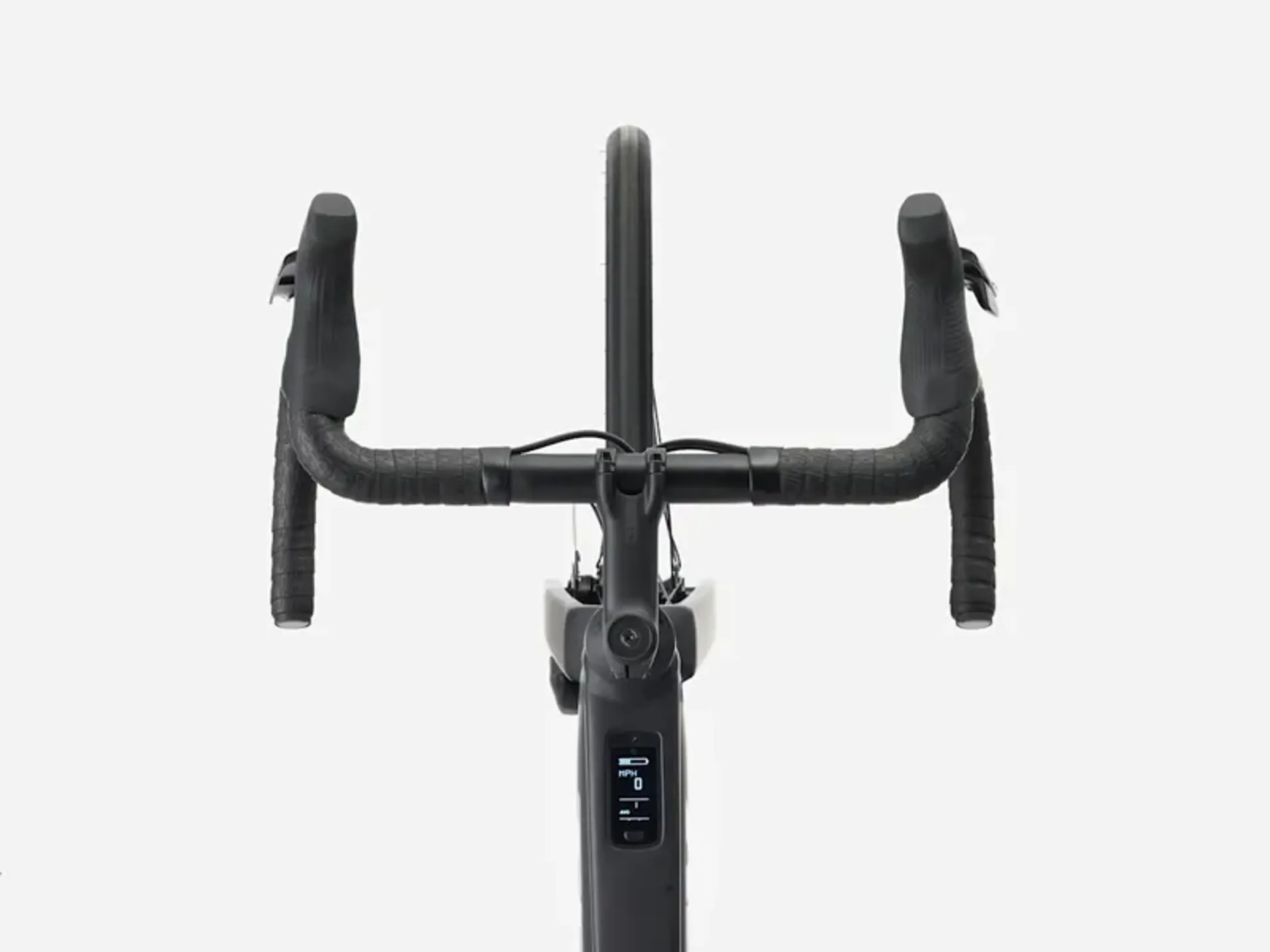

  • Handlebar
    Size: XS: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width; Size: S: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width; Size: M, ML: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width; Size: L, XL: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
  • Handlebar tape
    Trek EcoTack
  • Stem
    Size: XS: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: ML, L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length; Size: XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110mm length
  • Brake
    SRAM Apex D1 hydraulic disc, flat mount
  • Brake rotor
    SRAM Paceline, rounded, CentreLock, 160 mm
  • Brake lever
    SRAM Apex, 12 speed
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
