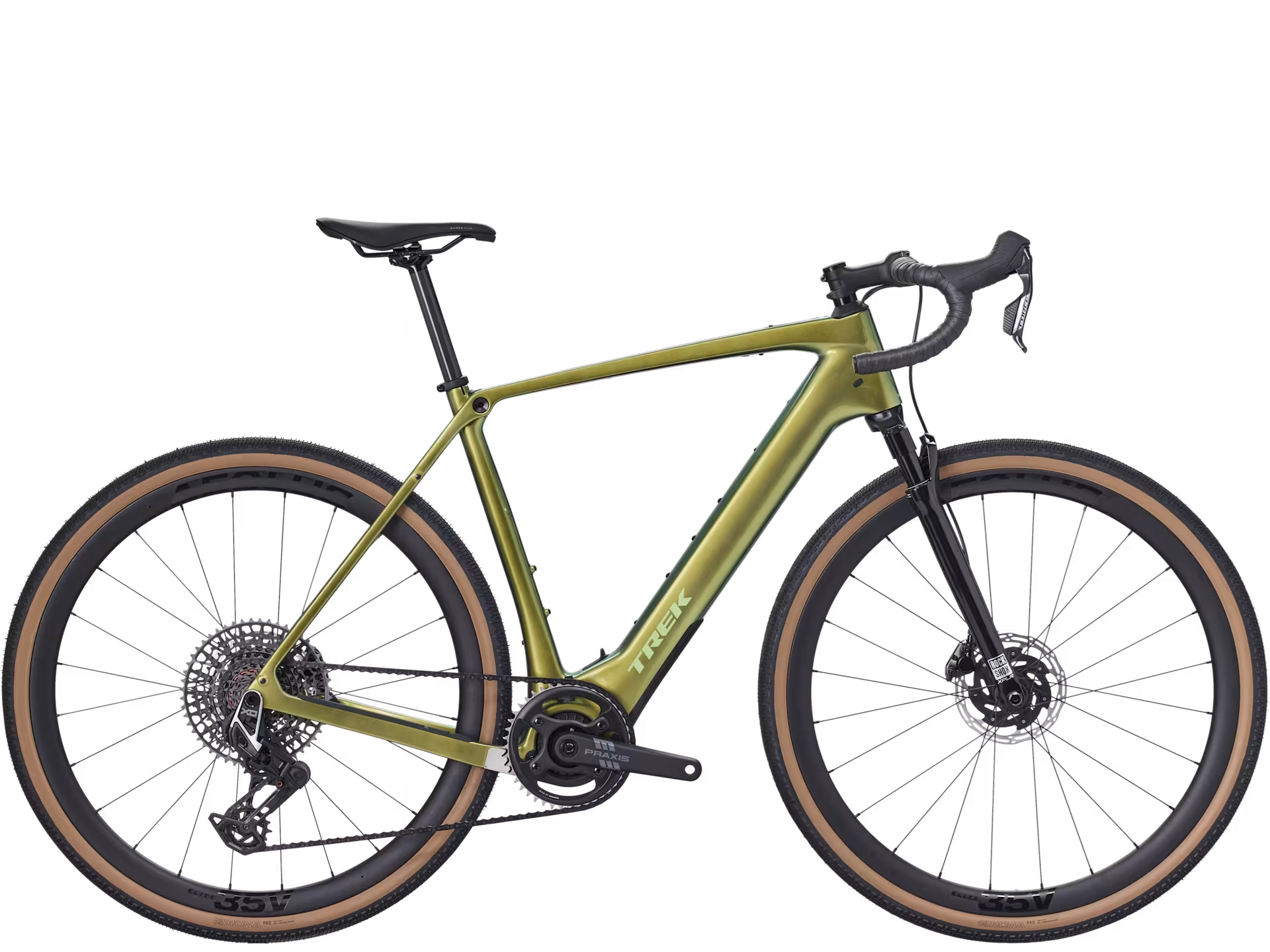

2026 Trek Checkpoint+ SL 7 AXS Electric Gravel Bike in Chameleon Green
2026 Trek Checkpoint+ SL 7 AXS Electric Gravel Bike in Chameleon Green
Trek

2026 Trek Checkpoint+ SL 7 AXS Electric Gravel Bike in Chameleon Green

£6,500.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

2026 Trek Checkpoint+ SL 7 AXS Electric Gravel Bike in Chameleon Green

Season:2026

Brand:Trek

Code:57447GRN

The checkpoint+ sl 7 is an electric gravel bike built to take you on your most far-out adventures. Its oclv carbon frame pairs with the smooth boost of tq's hpr-60 motor, while a 40 mm Rockshox rudy xplr suspension fork keeps handling confident and relaxed on the roughest roads. Sram's force axs e1 12-speed drivetrain delivers smooth, wireless shifting and oclv carbon bontrager aeolus elite 35v wheels and a carbon seatpost dampen vibrations while keeping the weight down
Technical Information
Frame - 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

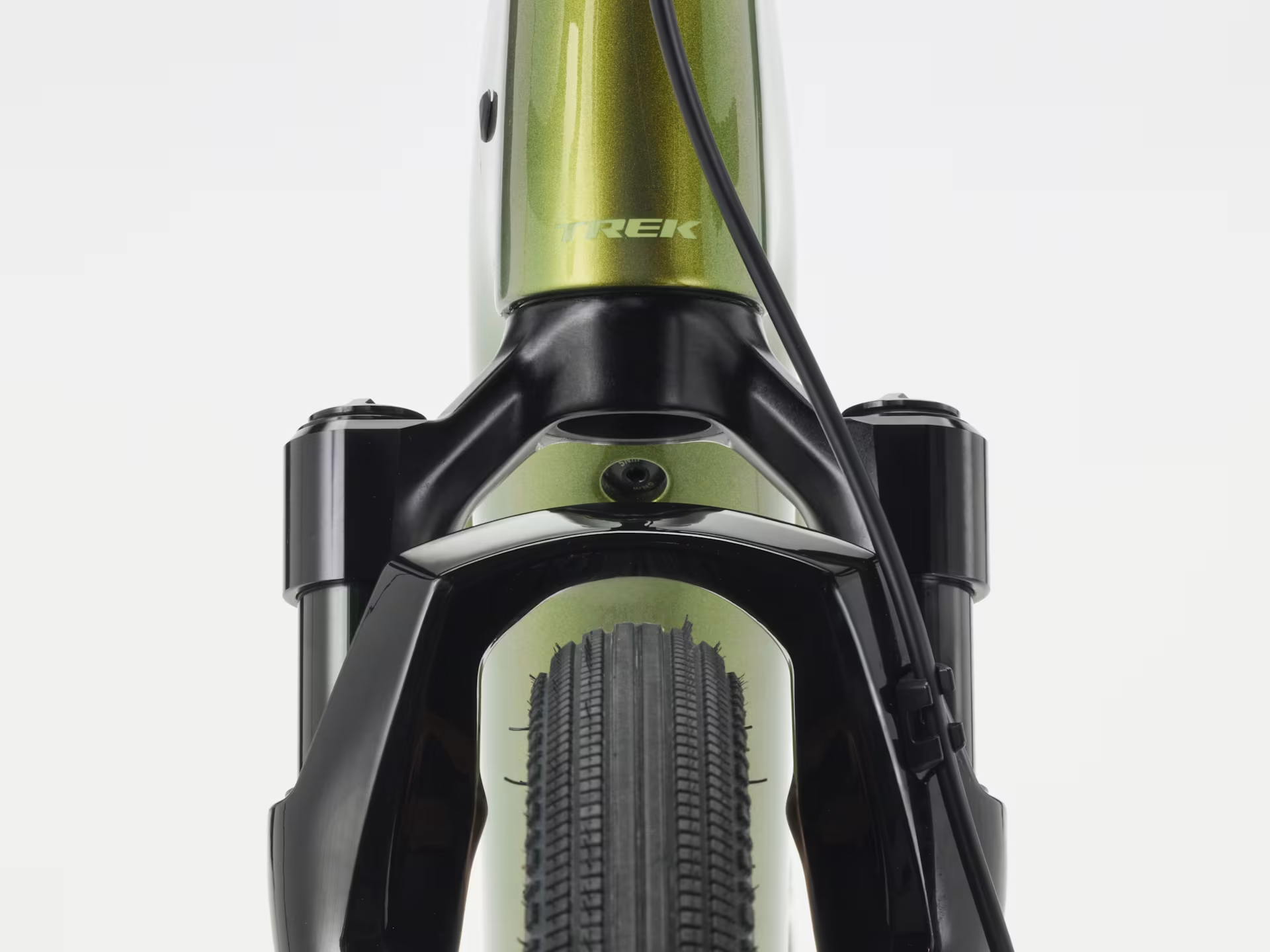

Fork - RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel
Weight - ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery - TQ 360Wh
Charger - TQ 4A charger

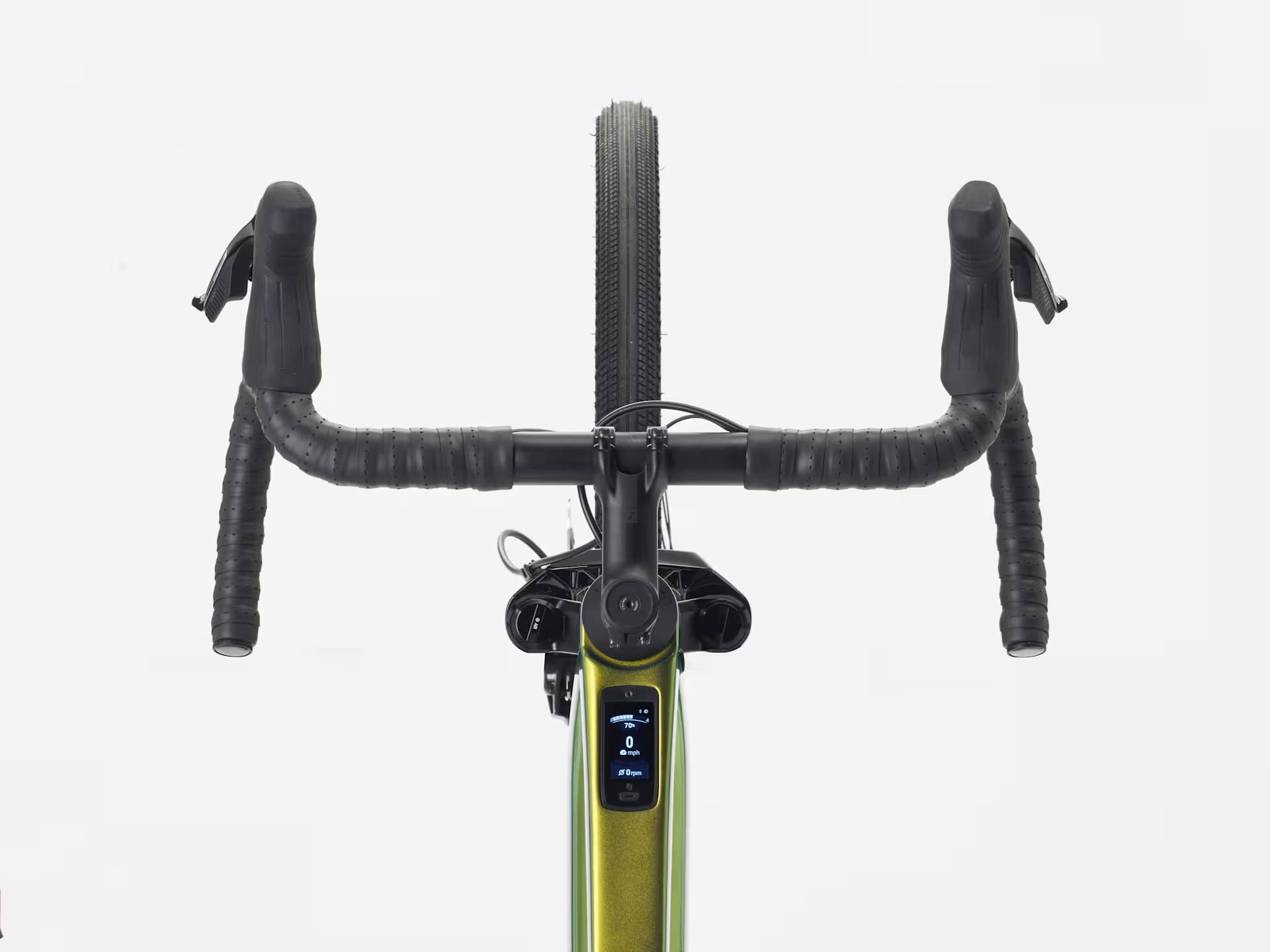

Controller - TQ color LED display with Bluetooth & ANT+ connectivity

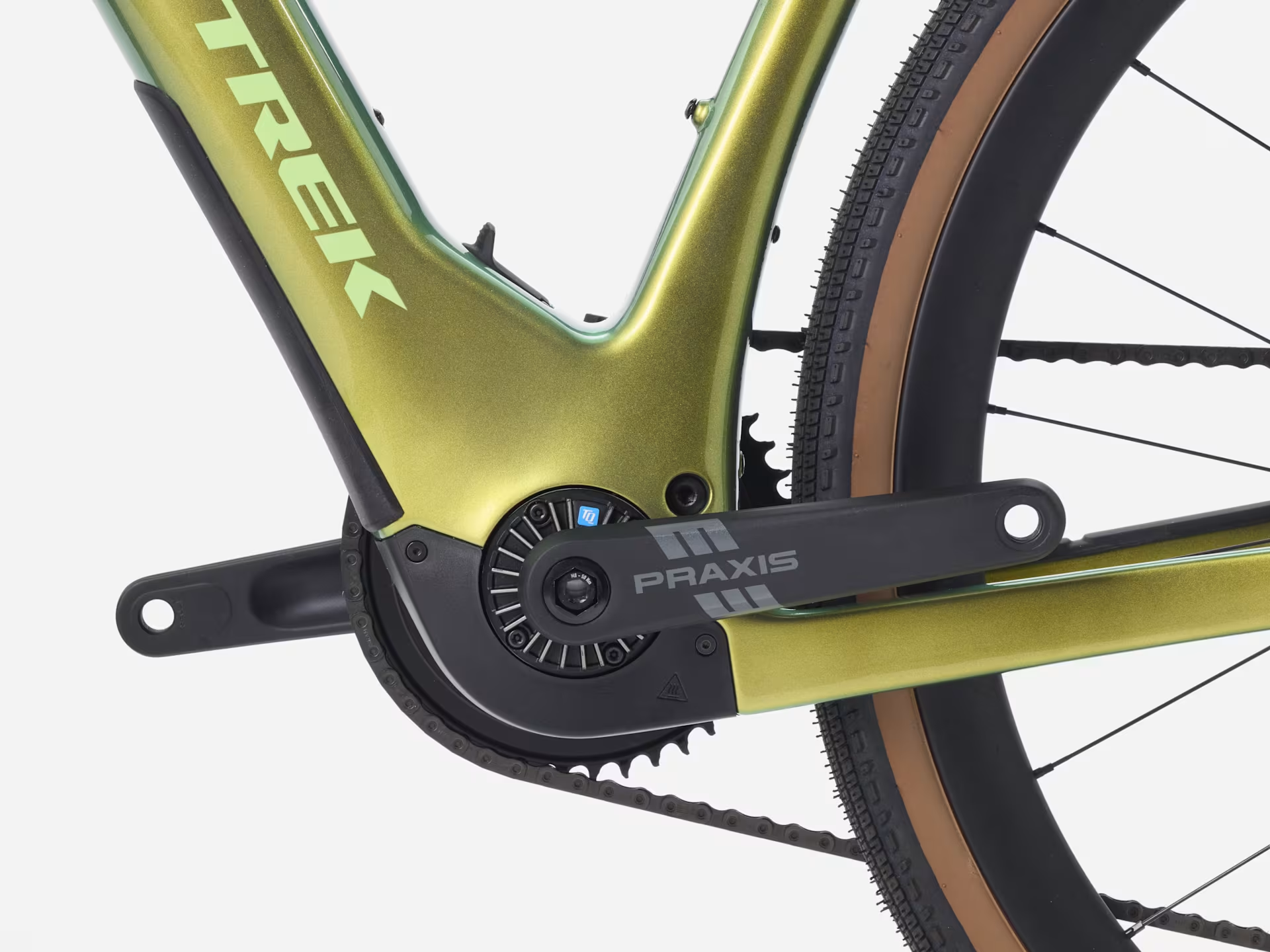

Motor - TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Shifter - SRAM Force AXS E1
Rear derailleur - SRAM X0 Eagle AXS, T-Type
Crank - Size: S Praxis Alloy, 165 mm length
Size: M, ML Praxis Alloy, 170 mm length
Size: L, XL Praxis Alloy, 172.5 mm length
Cassette - SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain - SRAM X0 Eagle, T-Type, 12-speed
Max. chainring size - 1x: 44T
Wheel front - Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear - Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm
Skewer rear - Bontrager Switch chamfered thru axle, removable lever
Tyre - Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Rim strip - Bontrager TLR
Max tyre size - 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle - Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost - Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar - Size: S Bontrager Pro Gravel, 40 cm width
Size: M, ML Bontrager Pro Gravel, 42 cm width
Size: L Bontrager Pro Gravel, 44 cm width
Size: XL Bontrager Pro Gravel, 46 cm width
Handlebar tape - Bontrager Supertack Perf tape
*Stem - Size: S, M Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
Size: ML, L Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size: XL Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Brake rotor - SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size - Max brake rotor sizes: 180 mm front and rear
